Zinc Plated Steel Thread Forming Screws & Thread Rolling Screws

Thread rolling screws are designed to tap their own threads into pre-drilled holes in light metals and steel. The triangular shaped tip design allows the thread rolling screw to cold form the female thread into the work piece, so there is no need to pre tap the hole. These items are manufactured to DIN 7500, a standard that covers several head and drive types, including the pozi pan head in this section.

Thread rolling screws are designed to tap their own threads into pre-drilled holes in light metals and steel. The triangular shaped tip design allows the thread rolling screw to cold form the female thread into the work piece, so there is no need to pre tap the hole. These items are manufactured to DIN 7500, a standard that covers several head and drive types, including the pozi countersunk head in this section.

Thread rolling screws are designed to tap their own threads into pre-drilled holes in light metals and steel. The triangular shaped tip design allows the thread rolling screw to cold form the female thread into the work piece, so there is no need to pre tap the hole. These items are manufactured to DIN 7500, a standard that covers several head and drive types, including the torx pan head in this section.

Thread rolling screws are designed to tap their own threads into pre-drilled holes in light metals and steel. The triangular shaped tip design allows the thread rolling screw to cold form the female thread into the work piece, so there is no need to pre tap the hole. These items are manufactured to DIN 7500, a standard that covers several head and drive types, including the countersunk head in this section.

Thread rolling screws are designed to tap their own threads into pre-drilled holes in light metals and steel. The triangular shaped tip design allows the thread rolling screw to cold form the female thread into the work piece, so there is no need to pre tap the hole. These items are manufactured to DIN 7500, a standard that covers several head and drive types, including the socket cap head in this section

Thread rolling screws are designed to tap their own threads into pre-drilled holes in light metals and steel. The triangular shaped tip design allows the thread rolling screw to cold form the female thread into the work piece, so there is no need to pre tap the hole. Thread rolling screws are defined in DIN 7500, but this standard does not mention this head type exactly, but this item conforms in every other respect.

Pozi Pan thread forming screws for thermo plastics. These thread forming screws have a 30 degree thread angle (flank angle) and an 8 degree thread pitch to optimise performance in all types of thermoplastics and some thermosets. Correctly used these screws will minimise the stress to the plastic and give optimal thread engagement and clamping loads. Please see the data sheet for the recommended pilot pre-drilled or moulded holes required for different plastics.

Pozi Pan Flange thread forming screws for thermo plastics. These thread forming screws have a 30 degree thread angle (flank angle) and an 8 degree thread pitch to optimise performance in all types of thermoplastics and some thermosets. Correctly used these screws will minimise the stress to the plastic and give optimal thread engagement and clamping loads. Please see the data sheet for the recommended pilot pre-drilled or moulded holes required for different plastics.

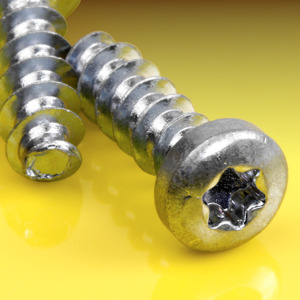

Torx Pan thread forming screws for thermo plastics. These thread forming screws have a 30 degree thread angle (flank angle) and an 8 degree thread pitch to optimise performance in all types of thermoplastics. Correctly used these screws will minimise the stress to the plastic and give optimal thread engagement and clamping loads. Please see the data sheet for the recommended pilot pre-drilled or moulded holes required for different plastics. The 6 lobed torx drive is also known as multidrive T or T-drive.

Torx Pan Flange thread forming screws for thermo plastics. These thread forming screws have a 30 degree thread angle (flank angle) and an 8 degree thread pitch to optimise performance in all types of thermoplastics. Correctly used these screws will minimise the stress to the plastic and give optimal thread engagement and clamping loads. Please see the data sheet for the recommended pilot pre-drilled or moulded holes required for different plastics. The 6 lobed torx drive is also known as multidrive T or T-drive.

Phillips Pan thread forming screws for thermo plastics. These thread forming screws have a 30 degree thread angle (flank angle) and an 8 degree thread pitch to optimise performance in all types of thermoplastics and some thermosets. Correctly used these screws will minimise the stress to the plastic and give optimal thread engagement and clamping loads. Please see the data sheet for the recommended pilot pre-drilled or moulded holes required for different plastics.

Pozi Countersunk thread forming screws for thermo plastics. These thread forming screws have a 30 degree thread angle (flank angle) and an 8 degree thread pitch to optimise performance in all types of thermoplastics and some thermosets. Correctly used these screws will minimise the stress to the plastic and give optimal thread engagement and clamping loads. Please see the data sheet for the recommended pilot pre-drilled or moulded holes required for different plastics.

Torx Countersunk thread forming screws for thermo plastics. These thread forming screws have a 30 degree thread angle (flank angle) and an 8 degree thread pitch to optimise performance in all types of thermoplastics and some thermosets. Correctly used these screws will minimise the stress to the plastic and give optimal thread engagement and clamping loads. Please see the data sheet for the recommended pilot pre-drilled or moulded holes required for different plastics. The 6 lobed torx drive is also known as multidrive T or T-drive.
