M2.5 Pozi Pan Thread Rolling Screws for Metal DIN 7500 Type CE-Z in Bright Zinc Plated (BZP) Steel

Thread rolling screws are designed to tap their own threads into pre-drilled holes in light metals and steel. The triangular shaped tip design allows the thread rolling screw to cold form the female thread into the work piece, so there is no need to pre tap the hole. These items are manufactured to DIN 7500, a standard that covers several head and drive types, including the pozi pan head in this section.

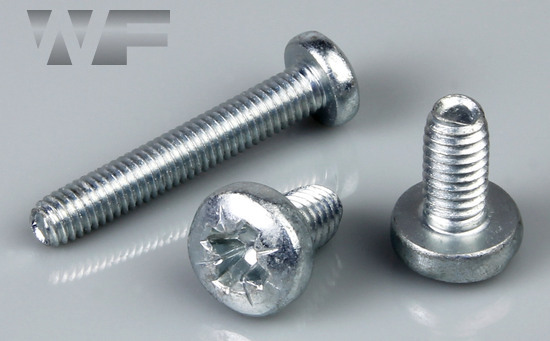

Pozi Pan Thread Rolling Screws for Metal DIN 7500 Type CE-Z in BZP image

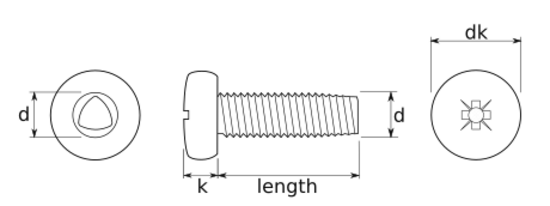

technical drawing of Pozi Pan Thread Rolling Screws for Metal DIN 7500 Type CE-Z
Technical Summary
d nominal diameter M2.5
dk head diameter 5.0
k head height 2.1
drive drive PZ1
all dimensions in millimetres (mm)
html graphic DIN 7500 Standard HTML
pdf graphic DIN 7500 Standard PDF
< View All Sizes
Description Sale Qtys Qty Price Breakdown Despatch Estimate
Pozi Pan Thread Rolling Screw for Metal M2.5 x 4mm in Zinc Plated Steel
WF67302
£0.00
Pozi Pan Thread Rolling Screw for Metal M2.5 x 5mm in Zinc Plated Steel
WF67303
£0.00
Pozi Pan Thread Rolling Screw for Metal M2.5 x 6mm in Zinc Plated Steel
WF67304
£0.00
Pozi Pan Thread Rolling Screw for Metal M2.5 x 8mm in Zinc Plated Steel
WF67305
£0.00
Pozi Pan Thread Rolling Screw for Metal M2.5 x 10mm in Zinc Plated Steel
WF67306
£0.00
Pozi Pan Thread Rolling Screw for Metal M2.5 x 12mm in Zinc Plated Steel
WF67307
£0.00
Pozi Pan Thread Rolling Screw for Metal M2.5 x 14mm in Zinc Plated Steel
WF67308
£0.00
Pozi Pan Thread Rolling Screw for Metal M2.5 x 16mm in Zinc Plated Steel
WF67309
£0.00
Pozi Pan Thread Rolling Screw for Metal M2.5 x 20mm in Zinc Plated Steel
WF67310
£0.00
Prices are subject to quantity discounts based on a sliding scale. Enter the desired quantity in the relevant box in the table above. This will automatically calculate a line price indicating the applicable rate for the quantities selected. All prices shown exclude VAT.
technical drawing of Pozi Pan Thread Rolling Screws for Metal DIN 7500 Type CE-Z
Technical Summary
d nominal diameter M2.5
dk head diameter 5.0
k head height 2.1
drive drive PZ1
all dimensions in millimetres (mm)
