A4 Stainless Steel UNF Bolts, Nuts and Washers

Commonly referred to as a setscrew and longer versions are referred to in the United States as a tap bolt. A standard spanner or ratchet is typically used to fit this product. Used for decades on all types of assembly throughout the world. The hex drive allows a higher torque to be applied. Produced to ASME B18.2.1.

The most common type of fastener, a hex head bolt is designed to be tightened with a standard spanner or ratchet and socket. Popularly used in all assemblies, a standard hex bolt is a staple across the world. Manufactured to ASME B18. 2.1, and includes an unthreaded 'shoulder' or portion of the shank. A hex drive permits a greater torque load to be applied to the joint over most other drive types.

Also known as an Allen screw or Allen bolt, or simply a cap screw, socket head cap screws are a more modern alternative standard machine fastener to the standard hexagon headed bolt or setscrew, as found on much modern machinery. A hex key (otherwise known as an Allen key) is required to fit these fasteners. Conforming to ASME/ANSI B18.3, the contact surfaces of this screw or bolt are protected from external damage. Generally manufactured with a partial thread beyond a certain length and nominal diameter combination, but occasionally some stock may include a fully threaded shank at the same combination.

A countersunk headed screw conforming with ASME/ANSI B18.3, requiring a hex key (otherwise known as an Allen key) to fit. The countersunk head is typically used in conjunction with a countersunk hole providing a flush, snag free fit. Generally manufactured with a full thread, though occasionally some stock may include a partially threaded shank.

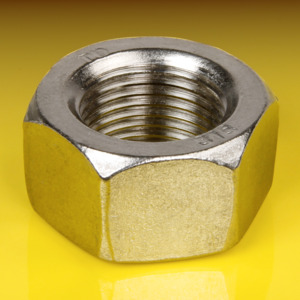

Hexagon full nut to ASME B18.6.3. Typically fitted with a spanner or ratchet with socket. The most popular nut type, and used for decades on all types of assembly throughout the world.

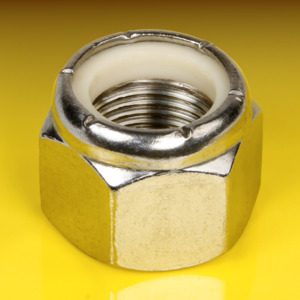

Prevailing torque type nut manufactured to IFI-100/107. Popularly employed Hexagon nut incorporating a nylon insert to help prevent loosening when fitted. Typically fitted with a spanner or ratchet with socket.

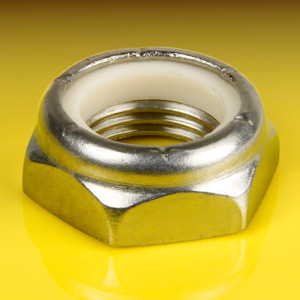

Prevailing torque nut, thin type. Popularly employed Hexagon nut incorporating a nylon insert to help prevent loosening when fitted. Typically fitted with a spanner or ratchet with socket.

Flat washer manufactured to BS 3410 Table 3 Light Specification.

Imperial Commercial Series washers imported from the USA. Similar thickness to the imperial Table 3 washers, also available on this site, but with a larger outer diameter. Available in 316 (A4) grade stainless steel, so ideal for marine use.

Spring washer designed to help prevent loosening of bolted joints under vibration. Also know as a Split Lock Washer and a Split Ring Washer. This type has a rectangular section and is manufactured to ASME B18.21.1-1999. Where even distribution of load on the mating surface is the primary requirement an alternative spring washer or a flat washer would be a more suitable solution. In addition Spring Washers do not offer protection for the material being fastened.

Nord-Lock washers, also known as wedge-locking washers, secure bolts with tension instead of friction. Working as a pair, these washers create a wedge-effect underneath the bolt head or nut so that the joint is prevented from loosening unintentionally. Nord-Lock washers are quick and easy to install and remove, and they are reusable. Supplied as a glued pair, they are appropriate for use in vehicles, for DIY and for watersport equipment. Most sizes are available in two external diameters: the smaller standard type listed here, and the larger SP type. Here you will find the specific imperial sizes; please refer to the data sheet and the metric section for other appropriate sizes.

Nord-Lock washers, also known as wedge-locking washers, secure bolts with tension instead of friction. Working as a pair, these washers create a wedge-effect underneath the bolt head or nut so that the joint is prevented from loosening unintentionally. Nord-Lock washers are quick and easy to install and remove, and they are reusable. Supplied as a glued pair, they are appropriate for use in vehicles, for DIY and for watersport equipment. Most sizes are available in two external diameters: the smaller standard type, and the larger SP type listed here. Here you will find the specific imperial sizes; please refer to the data sheet and the metric section for other appropriate sizes.
