UNF Socket Head Countersunk Screws ASME B18. 3-2003 in A4 Stainless Steel

A countersunk headed screw conforming with ASME/ANSI B18.3, requiring a hex key (otherwise known as an Allen key) to fit. The countersunk head is typically used in conjunction with a countersunk hole providing a flush, snag free fit. Generally manufactured with a full thread, though occasionally some stock may include a partially threaded shank.

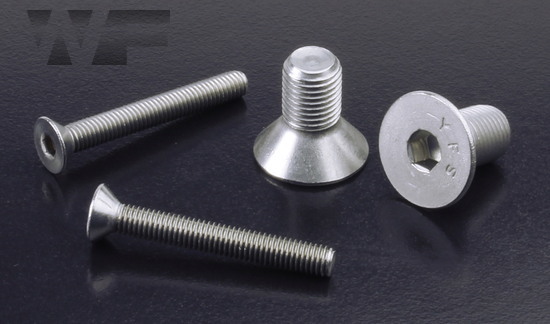

Image of UNF Socket Head Countersunk Screws ASME B18. 3-2003 in A4 image

Material Selection

BZP

technical drawing of UNF Socket Head Countersunk Screws ASME B18. 3-2003

Technical Summary

Standard

ASME B18.3

all dimensions in inches

Datasheet

< View All UNF Bolts, Nuts and Washers

Description	Sale Qtys	Qty	Price	Breakdown	Despatch Estimate
Socket Head Csk Screw UNF 10-32 x 3/8 inch in A4 Stainless WF63863			£0.00
Socket Head Csk Screw UNF 10-32 x 1/2 inch in A4 Stainless WF63865			£0.00
Socket Head Csk Screw UNF 10-32 x 5/8 inch in A4 Stainless WF63867			£0.00
Socket Head Csk Screw UNF 10-32 x 3/4 inch in A4 Stainless WF63869			£0.00
Socket Head Csk Screw UNF 10-32 x 1 inch in A4 Stainless WF63871			£0.00
Socket Head Csk Screw UNF 10-32 x 1-1/4 inch in A4 Stainless WF63873			£0.00
Socket Head Csk Screw UNF 10-32 x 1-1/2 inch in A4 Stainless WF58424			£0.00
Socket Head Csk Screw UNF 1/4 x 5/8 inch in A4 Stainless WF61567			£0.00

Socket Head Csk Screw UNF 10-32 x 3/8 inch in A4 Stainless
WF63863

Socket Head Csk Screw UNF 10-32 x 1/2 inch in A4 Stainless
WF63865

Socket Head Csk Screw UNF 10-32 x 5/8 inch in A4 Stainless
WF63867

Socket Head Csk Screw UNF 10-32 x 3/4 inch in A4 Stainless
WF63869

Socket Head Csk Screw UNF 10-32 x 1 inch in A4 Stainless
WF63871

Socket Head Csk Screw UNF 10-32 x 1-1/4 inch in A4 Stainless
WF63873

Socket Head Csk Screw UNF 10-32 x 1-1/2 inch in A4 Stainless
WF58424

Socket Head Csk Screw UNF 1/4 x 5/8 inch in A4 Stainless
WF61567

Prices are subject to quantity discounts based on a sliding scale. Enter the desired quantity in the relevant box in the table above. This will automatically calculate a line price indicating the applicable rate for the quantities selected. All prices shown exclude VAT.

Technical Summary

Standard

ASME B18.3

all dimensions in inches

Datasheet
