Duplex Stainless Steel Metric Washers

The Westfield Fasteners range of metric washers is presented below. Each item is typically available in either box or sachet quantity for despatch from our warehouse today. Metric washers are designed to be used in conjunction with the equivalent sized metric bolts, screws and nuts.

< View all Metric Washers

Penny Washers

Large Washers

Serrated Washers

Spring Washers

Fastener Material Key
A2	A2 Stainless Steel - Also known as grade 304 or 18/8. A general purpose grade of stainless steel.
A4	A4 Stainless Steel - Also known as grade 316 or 18/8/3. A higher corrosion resistant, marine grade of stainless steel.
A5	A5 Stainless Steel - A special stainless steel, also known as 316Ti and 1.4571. Similar to A4 but stabilised with titanium. Popularly employed in the chemical industry.
Alum	Aluminium - Aluminium is a lightweight, strong and corrosion resistant material. As the temperature lowers, aluminium actually increases in strength. It is also non-magnetic, carries a current and does not spark easily.
Brass	Brass - Offers an attractive, corrosion resistant finish.
Bronze	Phosphor Bronze - Attractive orange metal normally used in conjunction with brass fasteners.
BZP	Bright Zinc Plated (BZP) Steel - Non-stainless standard steel grade offering a basic level of corrosion resistance.
BZP 300HV	Bright Zinc Plated (BZP) Steel with 300HV hardness - Non-stainless standard steel grade offering a basic level of corrosion resistance, but with 300HV hardness.
Copper	Copper Alloy - Copper has good corrosion resistance and high tensile strength, allowing it to withstand high-pressure and high temperature conditions. It is a highly ductile and malleable material, enabling copper washers to create tighter seals and withstand vibration better than steel. Copper also provides excellent thermal and electrical conductivity.
Duplex	Duplex Stainless Steel 1.4462 - A type of stainless steel which has greater corrosion resistance than A4 / 316 and a high tensile strength of minimum 700 N/mm2. Also known as 318LN.
Nylon	Plastic (Nylon Polyamide) - A tough lightweight plastic, strong at low temperatures, with excellent resistance to chemicals, and features favourable sliding friction behaviour.
ZnFlk	Organic Zinc Flake Coated Steel - Steel parts coated with superior mechanically applied zinc with corrosion resistance lasting 480 hours in the salt spray test.
ZnFlk 300HV	Zinc Flake coated steel with 300HV hardness - Coated with superior mechanically applied zinc with corrosion resistance lasting 480 hours in the salt spray test, and with 300HV hardness.

less...

more...

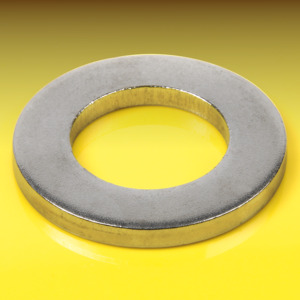

Form A Washers DIN 125A (Similar to ISO 7089) in Duplex Stainless Steel 1.4462

image chamfer for Form A Washers DIN 125A (Similar to ISO 7089)

Form A Washers DIN 125A (Similar to ISO 7089) in Duplex Stainless Steel 1.4462

A standard flat washer for use in just about any assembly. A flat washers main task is to spread the load across a wider area, which comes in particularly useful when dealing with softer materials. Conforms to DIN 125. Please note that due to manufacturing limitations, all nylon variants of these items are only "similar to" and not "in absolute accordance with" the standard specified.

Duplex

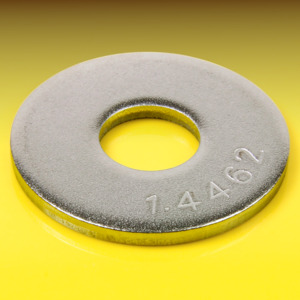

Washers DIN 9021 in Duplex Stainless Steel 1.4462

Washers DIN 9021 in Duplex Stainless Steel 1.4462

A large diameter washer where the external diameter is typically three times that of the nominal internal diameter. Also known as Form G, and complies with DIN 9021. Please note that due to manufacturing limitations, all nylon variants of these items are only "similar to" and not "in absolute accordance with" the standard specified.

Duplex

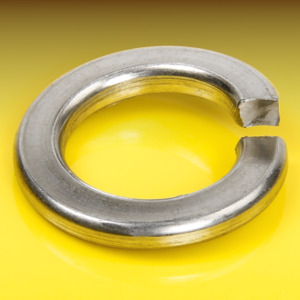

Rectangular Section Spring Washers DIN 127 in Duplex Stainless Steel 1.4462

image chamfer for Rectangular Section Spring Washers DIN 127

Rectangular Section Spring Washers DIN 127 in Duplex Stainless Steel 1.4462

Spring washer designed to help prevent loosening of bolted joints under vibration. Also know as a Split Lock Washer and a Split Ring Washer. This type has a rectangular section and is generally used on hexagon head bolted fixings, manufactured to DIN 127. Where even distribution of load on the mating surface is the primary requirement an alternative spring washer or a flat washer would be a more suitable solution. In addition Spring Washers do not offer protection for the material being fastened.

Duplex
