Wire Rope Clamp, Duplex Type in A4 Stainless Steel

Duplex wire clamps, also known as duplex wire rope grips, are used in wire cable assemblies to clamp the wire and create loops/eyes. Remove the nut and the plate and lay the wire around the threaded bolt part, with the loop protruding. Replace the plate and tighten the nut down to secure the wire loop.

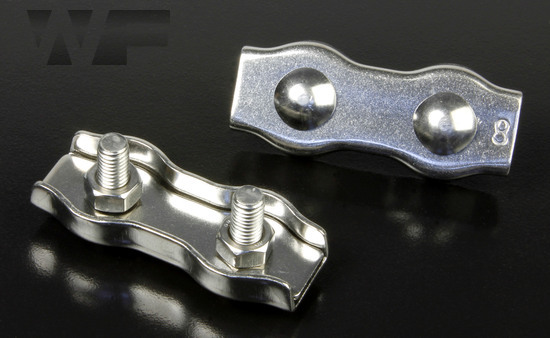

Wire Rope Clamp, Duplex Type in A4 image

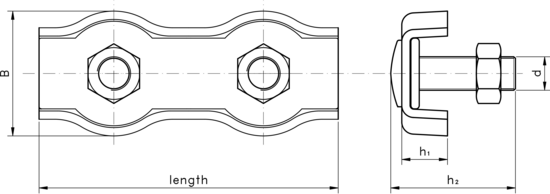

technical drawing of Wire Rope Clamp, Duplex Type
Technical Summary
Wire DiameterBdh2Lengthh1
212M414305
314M414367
418M517407
520M517508
624M623609
830M8277211
all dimensions in millimetres (mm)
html graphic Wire Clamp, Duplex Type Guide HTML
pdf graphic Wire Clamp, Duplex Type Guide PDF
< View All Marine Hardware
Prices are subject to quantity discounts based on a sliding scale. Enter the desired quantity in the relevant box in the table above. This will automatically calculate a line price indicating the applicable rate for the quantities selected. All prices shown exclude VAT.
technical drawing of Wire Rope Clamp, Duplex Type
Technical Summary
Wire DiameterBdh2Lengthh1
212M414305
314M414367
418M517407
520M517508
624M623609
830M8277211
all dimensions in millimetres (mm)
