Home   /   Marine Hardware   /   Ring Round and Welded in A4 Stainless Steel

Ring Round and Welded in A4 Stainless Steel

Rings made in marine grade A4 stainless steel are strong and corrosion resistant. These round shaped rings are welded and polished and have many uses, not only for ropes and rigging, but in the home too.

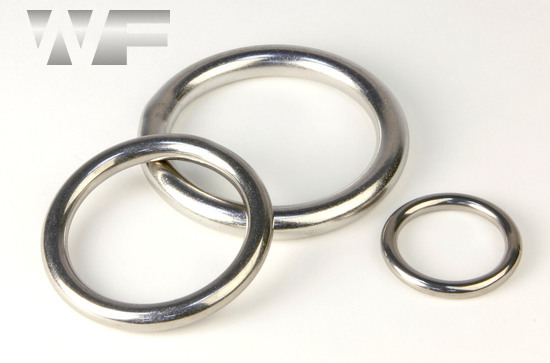

Ring Round and Welded in A4 image

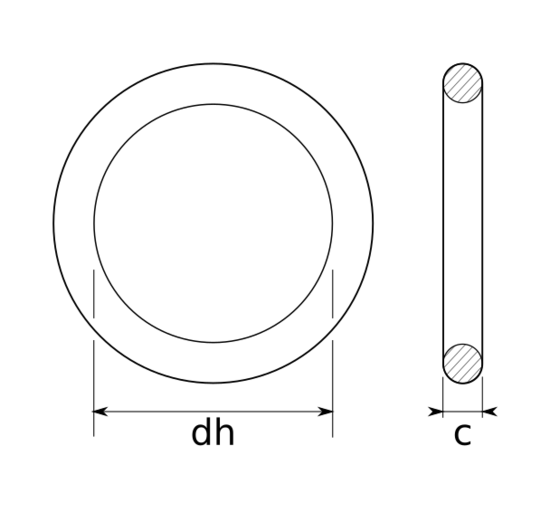

technical drawing of Ring Round and Welded
Technical Summary
sizec (thickness)dh (internal diameter)
3 x 20320
3 x 30330
4 x 25425
4 x 30430
4 x 35435
4 x 40440
5 x 30530
5 x 40540
6 x 35635
6 x 40640
6 x 45645
8 x 40840
8 x 50850
10 x 501050
10 x 601060
12 x 701270
all dimensions in millimetres (mm)
Datasheet
< View All Marine Hardware
Description Sale Qtys Qty Price Breakdown Despatch Estimate
3mm x 15mm Round Ring Welded in A4 Stainless
WF58127
£0.00
3mm x 20mm Round Ring Welded in A4 Stainless
WF58128
£0.00
3mm x 30mm Round Ring Welded in A4 Stainless
WF58129
£0.00
4mm x 25mm Round Ring Welded in A4 Stainless
WF58130
£0.00
4mm x 30mm Round Ring Welded in A4 Stainless
WF58131
£0.00
4mm x 35mm Round Ring Welded in A4 Stainless
WF58132
£0.00
4mm x 40mm Round Ring Welded in A4 Stainless
WF58133
£0.00
5mm x 30mm Round Ring Welded in A4 Stainless
WF58134
£0.00
5mm x 40mm Round Ring Welded in A4 Stainless
WF58135
£0.00
6mm x 35mm Round Ring Welded in A4 Stainless
WF58136
£0.00
6mm x 40mm Round Ring Welded in A4 Stainless
WF58137
£0.00
6mm x 45mm Round Ring Welded in A4 Stainless
WF58138
£0.00
8mm x 40mm Round Ring Welded in A4 Stainless
WF58139
£0.00
8mm x 50mm Round Ring Welded in A4 Stainless
WF58140
£0.00
10mm x 50mm Round Ring Welded in A4 Stainless
WF58141
£0.00
10mm x 60mm Round Ring Welded in A4 Stainless
WF58142
£0.00
12mm x 70mm Round Ring Welded in A4 Stainless
WF58143
£0.00
Prices are subject to quantity discounts based on a sliding scale. Enter the desired quantity in the relevant box in the table above. This will automatically calculate a line price indicating the applicable rate for the quantities selected. All prices shown exclude VAT.
technical drawing of Ring Round and Welded
Technical Summary
sizec (thickness)dh (internal diameter)
3 x 20320
3 x 30330
4 x 25425
4 x 30430
4 x 35435
4 x 40440
5 x 30530
5 x 40540
6 x 35635
6 x 40640
6 x 45645
8 x 40840
8 x 50850
10 x 501050
10 x 601060
12 x 701270
all dimensions in millimetres (mm)
