Brass Nuts And Bolts

Commonly referred to as a setscrew or simply as a bolt. The fully threaded DIN 933 or ISO 4017 should not be confused with its DIN 931 equivalent. A standard spanner or ratchet is typically used to fit this product. Used for decades on all types of assembly throughout the world. As with the DIN 931 hex bolt, the hex drive allows a higher torque to be applied. All parts are to DIN 933 except where shown otherwise. The alternative standard ISO 4017 specifies differences in head dimensions for M10, M12 and M14 thread diameters from DIN 933. Please note that due to manufacturing limitations, all nylon variants of these items are only "similar to" and not "in absolute accordance with" the standard specified.

Similar to DIN 84, but with a larger head diameter and a slightly different head profile. Manufactured to ISO 1580 or DIN 85. Please note that due to manufacturing limitations, all nylon variants of these items are only "similar to" and not "in absolute accordance with" the standard specified.

A slot drive, countersunk headed screw, typically used in conjunction with a countersunk hole which provides a flush, snag free fit.

A machine screw with a traditional slot drive and a flat topped near cylindrical shaped head. Manufactured to ISO 1207 or DIN 84. Please note that due to manufacturing limitations, all nylon variants of these items are only "similar to" and not "in absolute accordance with" the standard specified.

Generally used in timber to timber and timber to metal construction, these bolts incorporate a square neck to grip the hole in the timber when fitting, and therefore negates the need for any drive recess to be included on top of the head. Supplied to DIN 603. Please note that thread lengths stated are a minimum; In some cases a full thread will be supplied where a partial threaded shank is indicated in the specification. Nuts are supplied seperately, unlike the mild steel versions available elsewhere on the site.

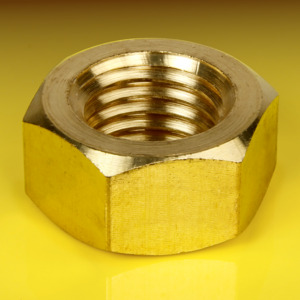

Hexagon full nut to DIN standard 934 with standard metric coarse pitch. Typically fitted with a spanner or ratchet with socket. The most popular nut type, and used for decades on all types of assemblies throughout the world. Can be used in conjunction with Hexagon Thin nuts in a "locking" formation for a more secure fitment. Fine pitch and left hand thread variants are also available immediately below this item. Please note that due to manufacturing limitations, all nylon variants of these items are only "similar to" and not "in absolute accordance with" the standard specified.

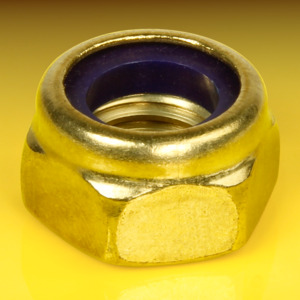

Prevailing torque type nut manufactured to DIN 985. Popularly employed Hexagon nut incorporating a nylon insert to help prevent loosening when fitted. This is the standard profile variant (Type T), a higher profile option is available under DIN 982 (Type P). Typically fitted with a spanner or ratchet with socket.

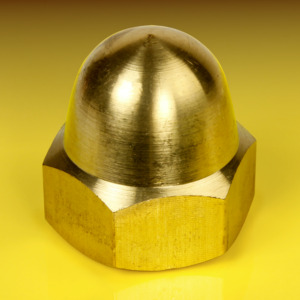

A popular nut used in applications where aesthetics are important, giving an attractive look. Domed end also ensures a smooth snag-free finish protecting both the fixing and any foreign body that may come into contact . Also known as an Acorn Nut, these nuts are manufactured to DIN 1587. Also available with a Nyloc insert to DIN 986. Please note that due to manufacturing limitations, all nylon variants of these items are only "similar to" and not "in absolute accordance with" the standard specified.

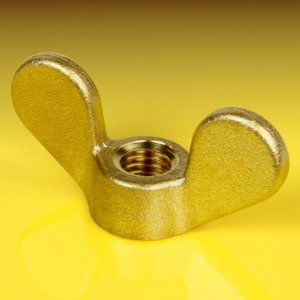

Popularly employed where frequent hand tightening and untightening of joints is required. To the German Form with slightly larger, rounded wings. To DIN 315. Please note that due to manufacturing limitations, all nylon variants of these items are only "similar to" and not "in absolute accordance with" the standard specified.

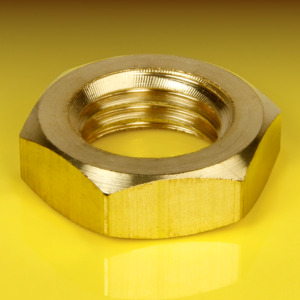

Nut conforming to DIN 439. Also known as a half nut, thin nut, or jam/lock nut. Typically fitted with a spanner or ratchet with socket, often used in pairs or in conjunction with a hexagon full nut in a locking arrangement. A popular nut type, and used for decades on all types of assembly throughout the world. Fine Pitch and Left Hand Thread variants are also available immediately below this item.

A standard flat washer for use in just about any assembly. A flat washers main task is to spread the load across a wider area, which comes in particularly useful when dealing with softer materials. Conforms to DIN 125. Please note that due to manufacturing limitations, all nylon variants of these items are only "similar to" and not "in absolute accordance with" the standard specified.

A thinner thickness flat washer. Produced To BS 4320.

A large diameter washer where the external diameter is typically three times that of the nominal internal diameter. Also known as Form G, and complies with DIN 9021. Please note that due to manufacturing limitations, all nylon variants of these items are only "similar to" and not "in absolute accordance with" the standard specified.

A raised countersunk headed screw offering an attractive finish. Always fully threaded, and includes an old style slot drive for fitting.

Hexagon full nut to ASME B18.2.2. Typically fitted with a spanner or ratchet with socket. The most popular nut type, and used for decades on all types of assembly throughout the world.
