M5 Torx Cap Screws With Low Head ISO 14580 in Bright Zinc Plated (BZP) Class 8 High Tensile Steel

Similar to the DIN 912 torx cap screw but with a lower head height and smaller Torx Key (6 lobe drive), the ISO 14580 is used where space is limited. Please note that 8.8 high tensile variants of this product are produced with a full thread only.

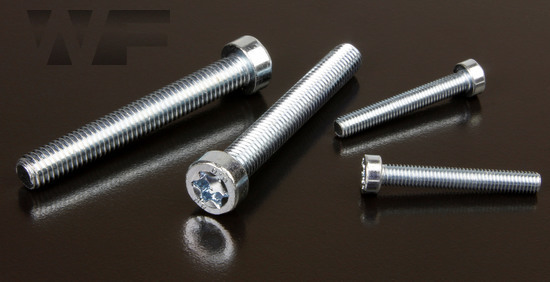

Torx Cap Screws With Low Head ISO 14580 in BZP-8.8 image

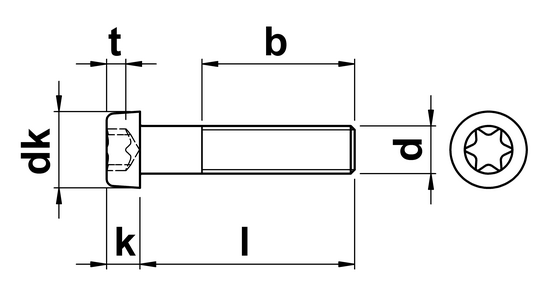

technical drawing of Torx Cap Screws With Low Head ISO 14580

Technical Summary

nominal diameter

thread pitch

0.80

head diameter

8.5

head height

3.65

t min.

minimum recess depth

1.52

t max.

maximum recess depth

1.91

minimum thread length

drive size

T 25

Standard

ISO 14580

all dimensions in millimetres (mm)

				ISO 14580 Standard HTML
				ISO 14580 Standard PDF

< View All Sizes

Description	Sale Qtys	Qty	Price	Breakdown	Despatch Estimate
M5 x 6 T25 Torx Low Head Cap Screw in Zinc Plated High Tensile 8.8 Steel WF66563			£0.00
M5 x 8 T25 Torx Low Head Cap Screw in Zinc Plated High Tensile 8.8 Steel WF66564			£0.00
M5 x 10 T25 Torx Low Head Cap Screw in Zinc Plated High Tensile 8.8 Steel WF66565			£0.00
M5 x 12 T25 Torx Low Head Cap Screw in Zinc Plated High Tensile 8.8 Steel WF66566			£0.00
M5 x 16 T25 Torx Low Head Cap Screw T25 in Zinc Plated High Tensile 8.8 Steel WF66568			£0.00
M5 x 20 T25 Torx Low Head Cap Screw in Zinc Plated High Tensile 8.8 Steel WF66570			£0.00
M5 x 25 T25 Torx Low Head Cap Screw in Zinc Plated High Tensile 8.8 Steel WF66571			£0.00
M5 x 30 T25 Torx Low Head Cap Screw in Zinc Plated High Tensile 8.8 Steel WF66572			£0.00
M5 x 35 T25 Torx Low Head Cap Screw in Zinc Plated High Tensile 8.8 Steel WF66573			£0.00
M5 x 40 T25 Torx Low Head Cap Screw in Zinc Plated High Tensile 8.8 Steel WF66574			£0.00

M5 x 6 T25 Torx Low Head Cap Screw in Zinc Plated High Tensile 8.8 Steel
WF66563

M5 x 8 T25 Torx Low Head Cap Screw in Zinc Plated High Tensile 8.8 Steel
WF66564

M5 x 10 T25 Torx Low Head Cap Screw in Zinc Plated High Tensile 8.8 Steel
WF66565

M5 x 12 T25 Torx Low Head Cap Screw in Zinc Plated High Tensile 8.8 Steel
WF66566

M5 x 16 T25 Torx Low Head Cap Screw T25 in Zinc Plated High Tensile 8.8 Steel
WF66568

M5 x 20 T25 Torx Low Head Cap Screw in Zinc Plated High Tensile 8.8 Steel
WF66570

M5 x 25 T25 Torx Low Head Cap Screw in Zinc Plated High Tensile 8.8 Steel
WF66571

M5 x 30 T25 Torx Low Head Cap Screw in Zinc Plated High Tensile 8.8 Steel
WF66572

M5 x 35 T25 Torx Low Head Cap Screw in Zinc Plated High Tensile 8.8 Steel
WF66573

M5 x 40 T25 Torx Low Head Cap Screw in Zinc Plated High Tensile 8.8 Steel
WF66574

Prices are subject to quantity discounts based on a sliding scale. Enter the desired quantity in the relevant box in the table above. This will automatically calculate a line price indicating the applicable rate for the quantities selected. All prices shown exclude VAT.
