5mm diameter Slotted Countersunk Wood Screws DIN 97 in Brass

Slotted Countersunk Woods Screw giving a flush, smooth and snagfree finish when used. Please refer to dimensions on the datasheet when replacing existing wood screws, as there can be variation between actual and nominal diameters.

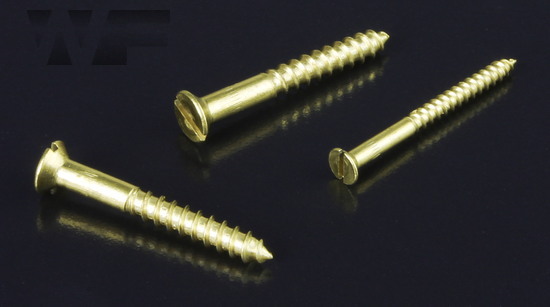

Slotted Countersunk Wood Screws DIN 97 in BRASS image

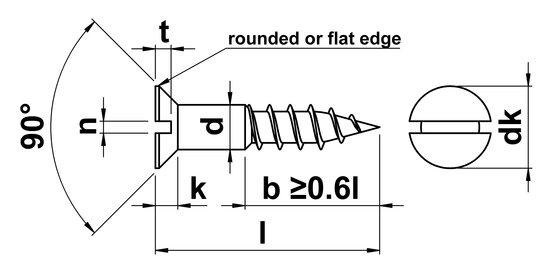

technical drawing of Slotted Countersunk Wood Screws DIN 97

Technical Summary

d (nominal)

nominal diameter

d (actual)

actual diameter

4.6-5.0

head diameter

9.2

head height

2.50

slot thickness

1.2

t max.

maximum recess depth

1.30

Standard

DIN 97

all dimensions in millimetres (mm)

Datasheet

< View All Sizes

Description	Sale Qtys	Qty	Price	Breakdown	Despatch Estimate
5mm x 16mm Wood Screw Slotted Countersunk in Brass WF55994			£0.00
5mm x 20mm Wood Screw Slotted Countersunk in Brass WF56014			£0.00
5mm x 25mm Wood Screw Slotted Countersunk in Brass WF56015			£0.00
5mm x 30mm Wood Screw Slotted Countersunk in Brass WF56016			£0.00
5mm x 35mm Wood Screw Slotted Countersunk in Brass WF56017			£0.00
5mm x 40mm Wood Screw Slotted Countersunk in Brass WF56018			£0.00
5mm x 45mm Wood Screw Slotted Countersunk in Brass WF56019			£0.00
5mm x 50mm Wood Screw Slotted Countersunk in Brass WF56020			£0.00
5mm x 55mm Wood Screw Slotted Countersunk in Brass WF56021			£0.00
5mm x 60mm Wood Screw Slotted Countersunk in Brass WF55945			£0.00
5mm x 70mm Wood Screw Slotted Countersunk in Brass WF55946			£0.00
5mm x 80mm Wood Screw Slotted Countersunk in Brass WF55947			£0.00
5mm x 90mm Wood Screw Slotted Countersunk in Brass WF55948			£0.00
5mm x 100mm Wood Screw Slotted Countersunk in Brass WF55949			£0.00

5mm x 16mm Wood Screw Slotted Countersunk in Brass
WF55994

5mm x 20mm Wood Screw Slotted Countersunk in Brass
WF56014

5mm x 25mm Wood Screw Slotted Countersunk in Brass
WF56015

5mm x 30mm Wood Screw Slotted Countersunk in Brass
WF56016

5mm x 35mm Wood Screw Slotted Countersunk in Brass
WF56017

5mm x 40mm Wood Screw Slotted Countersunk in Brass
WF56018

5mm x 45mm Wood Screw Slotted Countersunk in Brass
WF56019

5mm x 50mm Wood Screw Slotted Countersunk in Brass
WF56020

5mm x 55mm Wood Screw Slotted Countersunk in Brass
WF56021

5mm x 60mm Wood Screw Slotted Countersunk in Brass
WF55945

5mm x 70mm Wood Screw Slotted Countersunk in Brass
WF55946

5mm x 80mm Wood Screw Slotted Countersunk in Brass
WF55947

5mm x 90mm Wood Screw Slotted Countersunk in Brass
WF55948

5mm x 100mm Wood Screw Slotted Countersunk in Brass
WF55949

Prices are subject to quantity discounts based on a sliding scale. Enter the desired quantity in the relevant box in the table above. This will automatically calculate a line price indicating the applicable rate for the quantities selected. All prices shown exclude VAT.
