| Technical Summary | ||||||||

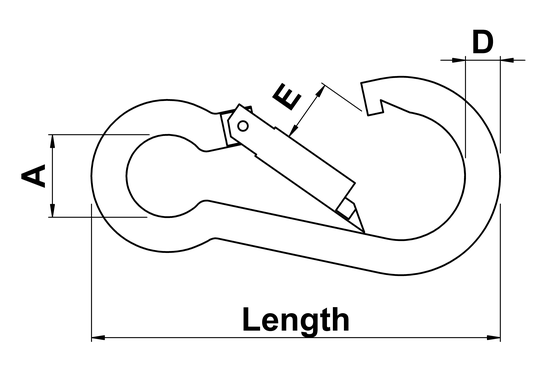

| Size | Length | D | A | E | Safe Working Load (SWL) kg | Min Breaking Load (BL) kN | ||
| 3 x 30 | 30 | 3 | 5 | 5 | 25 | 0.9 | ||
| 4 x 40 | 40 | 4 | 6.5 | 6 | 60 | 2.3 | ||
| 5 x 50 | 50 | 5 | 8 | 7 | 85 | 3.4 | ||
| 6 x 60 | 60 | 6 | 9 | 8 | 130 | 5.1 | ||
| 7 x 70 | 70 | 7 | 10.5 | 8 | 160 | 6.3 | ||
| 8 x 80 | 80 | 8 | 12 | 9 | 200 | 7.8 | ||
| 10 x 100 | 100 | 10 | 15 | 12 | 300 | 11.8 | ||
| 11 x 120 | 120 | 11 | 18 | 16 | 350 | 13.9 | ||
| 12 x 140 | 140 | 12 | 20 | 19 | 420 | 16.5 | ||
| all dimensions in millimetres (mm) | ||||||||
|
||||||||
|
||||||||
| Technical Summary | ||||||||
| Size | Length | D | A | E | Safe Working Load (SWL) kg | Min Breaking Load (BL) kN | ||
| 3 x 30 | 30 | 3 | 5 | 5 | 25 | 0.9 | ||
| 4 x 40 | 40 | 4 | 6.5 | 6 | 60 | 2.3 | ||
| 5 x 50 | 50 | 5 | 8 | 7 | 85 | 3.4 | ||
| 6 x 60 | 60 | 6 | 9 | 8 | 130 | 5.1 | ||
| 7 x 70 | 70 | 7 | 10.5 | 8 | 160 | 6.3 | ||
| 8 x 80 | 80 | 8 | 12 | 9 | 200 | 7.8 | ||
| 10 x 100 | 100 | 10 | 15 | 12 | 300 | 11.8 | ||
| 11 x 120 | 120 | 11 | 18 | 16 | 350 | 13.9 | ||
| 12 x 140 | 140 | 12 | 20 | 19 | 420 | 16.5 | ||
| all dimensions in millimetres (mm) | ||||||||
|
||||||||
|
||||||||
