Carbine Hook Asymmetric Shape with Thimble in A4 Stainless Steel

Carbine Hook Asymmetric Shape with Thimble - also referred to as a Snap Hook, Carabiner Hook, Carbine Clip or Spring Hook. These are designed for applications where a higher degree of strength is required. The asymmetric (D-Shaped) design means the working load is mainly directed down the spine of the hook, which is considered the strongest section. Ideal for use in many Yachting/Boating applications such as rigging. The added Thimble facilitates easy and safe gliding of rope through the hook. Manufactured in A4 grade Stainless Steel for excellent anti-corrosive properties. Please note that the spring itself is in A2 grade stainless.

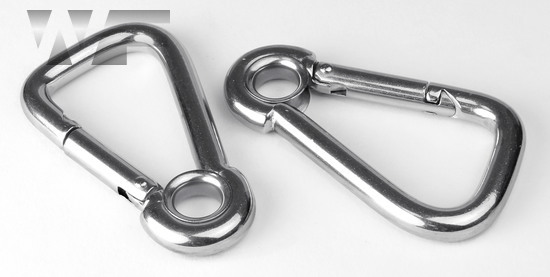

Carbine Hook Asymmetric Shape with Thimble in A4 image

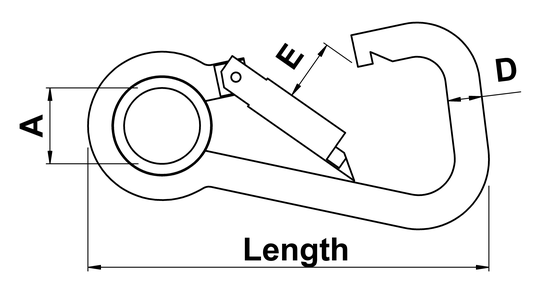

technical drawing of Carbine Hook Asymmetric Shape with Thimble
Technical Summary
SizeLengthDAESafe Working Load (SWL) kgMin breaking Load(BL) kN
6 x 606067.5101305.1
8 x 8080810131957.8
10 x 10010010131830011.8
11 x 12012011152435513.9
all dimensions in millimetres (mm)
Datasheet
< View All Marine Hardware
Prices are subject to quantity discounts based on a sliding scale. Enter the desired quantity in the relevant box in the table above. This will automatically calculate a line price indicating the applicable rate for the quantities selected. All prices shown exclude VAT.
technical drawing of Carbine Hook Asymmetric Shape with Thimble
Technical Summary
SizeLengthDAESafe Working Load (SWL) kgMin breaking Load(BL) kN
6 x 606067.5101305.1
8 x 8080810131957.8
10 x 10010010131830011.8
11 x 12012011152435513.9
all dimensions in millimetres (mm)
