No.7 Slotted Raised Csk Self Tapping Screws DIN 7973C in A2 Stainless Steel

A Slotted Countersunk headed self tapping screw incorporating a slightly raised head which gives it an attractive finish when fitted.

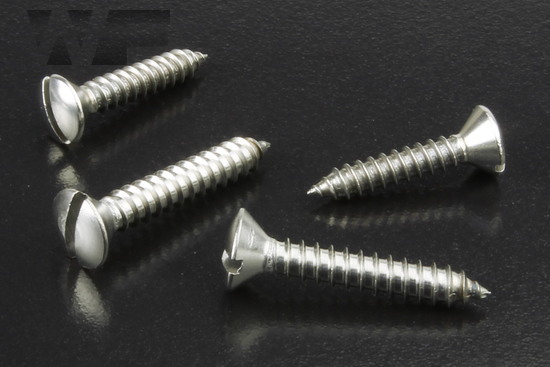

Slotted Raised Csk Self Tapping Screws DIN 7973C in A2 image

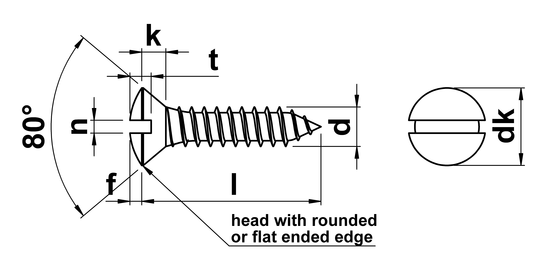

technical drawing of Slotted Raised Csk Self Tapping Screws DIN 7973C

Technical Summary

d (gauge)

diameter in gauge size

No.7

d (mm)

diameter in mm

3.9

head diameter

7.5

dome height

1.3

head height

2.3

slot thickness

1.0

t max.

maximum recess depth

2.05

drive size

1.0X5.5

Standard

DIN 7973

all dimensions in millimetres (mm)

Datasheet

< View All Sizes

Description	Sale Qtys	Qty	Price	Breakdown	Despatch Estimate
Tapping Screw Slotted Raised Csk (AB) No.7 x 9.5mm in A2 Stainless WF40351			£0.00
Self Tapping Screw Slotted Raised Csk (AB) No.7 x 13mm in A2 Stainless WF40343			£0.00
Self Tapping Screw Slotted Raised Csk (AB) No.7 x 16mm in A2 Stainless WF40344			£0.00
Self Tapping Screw Slotted Raised Csk (AB) No.7 x 19mm in A2 Stainless WF40345			£0.00
Self Tapping Screw Slotted Raised Csk (AB) No.7 x 22mm in A2 Stainless WF40346			£0.00
Self Tapping Screw Slotted Raised Csk (AB) No.7 x 25mm in A2 Stainless WF40347			£0.00
Self Tapping Screw Slotted Raised Csk (AB) No.7 x 32mm in A2 Stainless WF40348			£0.00
Self Tapping Screw Slotted Raised Csk (AB) No.7 x 38mm in A2 Stainless WF40349			£0.00

Tapping Screw Slotted Raised Csk (AB) No.7 x 9.5mm in A2 Stainless
WF40351

Self Tapping Screw Slotted Raised Csk (AB) No.7 x 13mm in A2 Stainless
WF40343

Self Tapping Screw Slotted Raised Csk (AB) No.7 x 16mm in A2 Stainless
WF40344

Self Tapping Screw Slotted Raised Csk (AB) No.7 x 19mm in A2 Stainless
WF40345

Self Tapping Screw Slotted Raised Csk (AB) No.7 x 22mm in A2 Stainless
WF40346

Self Tapping Screw Slotted Raised Csk (AB) No.7 x 25mm in A2 Stainless
WF40347

Self Tapping Screw Slotted Raised Csk (AB) No.7 x 32mm in A2 Stainless
WF40348

Self Tapping Screw Slotted Raised Csk (AB) No.7 x 38mm in A2 Stainless
WF40349

Prices are subject to quantity discounts based on a sliding scale. Enter the desired quantity in the relevant box in the table above. This will automatically calculate a line price indicating the applicable rate for the quantities selected. All prices shown exclude VAT.
