No.14 Pozi Raised Csk Self Tapping Screws DIN 7983Z in A2 Stainless Steel

A Pozidrive Countersunk headed self tapping screw incorporating a slightly raised head which gives it an attractive finish when fitted.

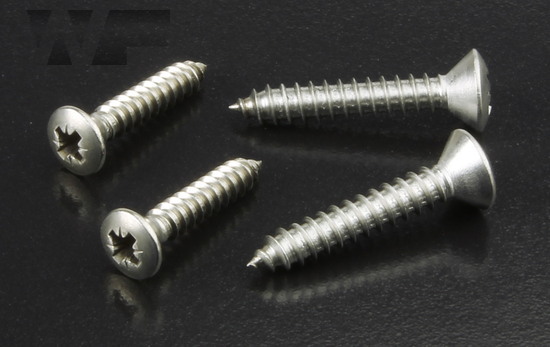

Pozi Raised Csk Self Tapping Screws DIN 7983Z in A2 image

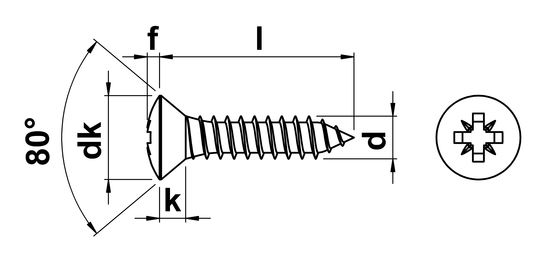

technical drawing of Pozi Raised Csk Self Tapping Screws DIN 7983Z

Technical Summary

d (gauge)

diameter in gauge size

No.14

d (mm)

diameter in mm

6.3

head height

3.8

dome height

2.0

head diameter

12.4

drive size

Standard

DIN 7983/C

all dimensions in millimetres (mm)

Datasheet

< View All Sizes

Description	Sale Qtys	Qty	Price	Breakdown	Despatch Estimate
No.14 x 13mm Self Tapping Screw Pozi Raised Csk (AB) in A2 Stainless WF50622			£0.00
No.14 x 16mm Self Tapping Screw Pozi Raised Csk (AB) in A2 Stainless WF50623			£0.00
No.14 x 19mm Self Tapping Screw Pozi Raised Csk (AB) in A2 Stainless WF50624			£0.00
No.14 x 22mm Self Tapping Screw Pozi Raised Csk (AB) in A2 Stainless WF50625			£0.00
No.14 x 25mm Self Tapping Screw Pozi Raised Csk (AB) in A2 Stainless WF50626			£0.00
No.14 x 32mm Self Tapping Screw Pozi Raised Csk (AB) in A2 Stainless WF50627			£0.00
No.14 x 38mm Self Tapping Screw Pozi Raised Csk (AB) in A2 Stainless WF50628			£0.00
No.14 x 50mm Self Tapping Screw Pozi Raised Csk (AB) in A2 Stainless WF50629			£0.00
No.14 x 60mm Self Tapping Screw Pozi Raised Csk (AB) in A2 Stainless WF50630			£0.00
No.14 x 70mm Self Tapping Screw Pozi Raised Csk (AB) in A2 Stainless WF50631			£0.00
No.14 x 80mm Self Tapping Screw Pozi Raised Csk (AB) in A2 Stainless WF50632			£0.00
No.14 x 90mm Self Tapping Screw Pozi Raised Csk (AB) in A2 Stainless WF50633			£0.00
No.14 x 100mm Self Tapping Screw Pozi Raised Csk (AB) in A2 Stainless WF50621			£0.00

No.14 x 13mm Self Tapping Screw Pozi Raised Csk (AB) in A2 Stainless
WF50622

No.14 x 16mm Self Tapping Screw Pozi Raised Csk (AB) in A2 Stainless
WF50623

No.14 x 19mm Self Tapping Screw Pozi Raised Csk (AB) in A2 Stainless
WF50624

No.14 x 22mm Self Tapping Screw Pozi Raised Csk (AB) in A2 Stainless
WF50625

No.14 x 25mm Self Tapping Screw Pozi Raised Csk (AB) in A2 Stainless
WF50626

No.14 x 32mm Self Tapping Screw Pozi Raised Csk (AB) in A2 Stainless
WF50627

No.14 x 38mm Self Tapping Screw Pozi Raised Csk (AB) in A2 Stainless
WF50628

No.14 x 50mm Self Tapping Screw Pozi Raised Csk (AB) in A2 Stainless
WF50629

No.14 x 60mm Self Tapping Screw Pozi Raised Csk (AB) in A2 Stainless
WF50630

No.14 x 70mm Self Tapping Screw Pozi Raised Csk (AB) in A2 Stainless
WF50631

No.14 x 80mm Self Tapping Screw Pozi Raised Csk (AB) in A2 Stainless
WF50632

No.14 x 90mm Self Tapping Screw Pozi Raised Csk (AB) in A2 Stainless
WF50633

No.14 x 100mm Self Tapping Screw Pozi Raised Csk (AB) in A2 Stainless
WF50621

Prices are subject to quantity discounts based on a sliding scale. Enter the desired quantity in the relevant box in the table above. This will automatically calculate a line price indicating the applicable rate for the quantities selected. All prices shown exclude VAT.
