M2.5 Torx Pan Head Screws Sim. DIN 7985 in A2 Stainless Steel

Also known as star, 6 lobe, and hexalobular internal. Torx screws are commonly found on cars, motorcycles, bicycle brake systems, hard disk drives, computer systems and consumer electronics and are becoming increasingly popular. Once, they were typically used in applications requiring tamper resistance; as drivers became more common, specific tamper-resistant variants were developed. The Torx design allows for a higher torque to be exerted than a similarly sized conventional hex socket head. Conforms with DIN 7985.

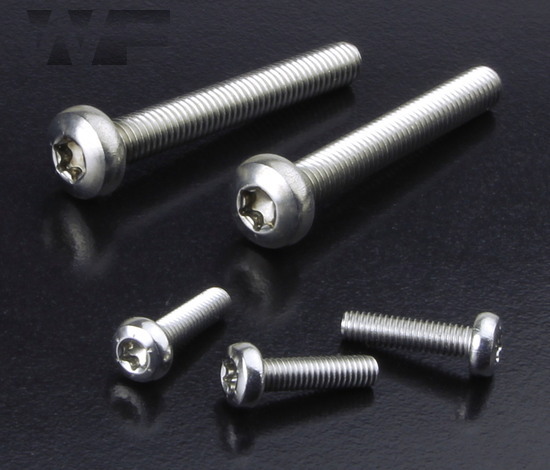

Torx Pan Head Screws Sim. DIN 7985 in A2 image

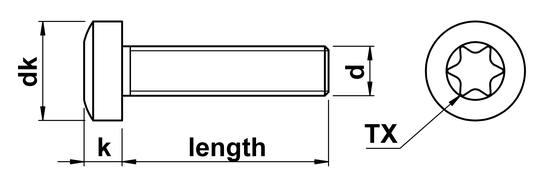

technical drawing of Torx Pan Head Screws Sim. DIN 7985
Technical Summary
d nominal diameter M2.5
thread pitch thread pitch 0.45
dk head diameter 5
k head height 2.0
s drive size T 8
Standard ISO 14583 (DIN 7985)
all dimensions in millimetres (mm)
Datasheet
< View All Sizes
Description Sale Qtys Qty Price Breakdown Despatch Estimate
M2.5 x 3mm Torx Pan Screw in A2 Stainless
WF26468
£0.00
M2.5 x 4mm Torx Pan Screw in A2 Stainless
WF26469
£0.00
M2.5 x 5mm Torx Pan Screw in A2 Stainless
WF26470
£0.00
M2.5 x 6mm Torx Pan Screw in A2 Stainless
WF26471
£0.00
M2.5 x 8mm Torx Pan Screw in A2 Stainless
WF26472
£0.00
M2.5 x 10mm Torx Pan Screw in A2 Stainless
WF26473
£0.00
M2.5 x 12mm Torx Pan Screw in A2 Stainless
WF26474
£0.00
M2.5 x 14mm Torx Pan Screw in A2 Stainless
WF26475
£0.00
M2.5 x 16mm Torx Pan Screw in A2 Stainless
WF26476
£0.00
M2.5 x 18mm Torx Pan Screw in A2 Stainless
WF26477
£0.00
M2.5 x 20mm Torx Pan Screw in A2 Stainless
WF26478
£0.00
M2.5 x 22mm Torx Pan Screw in A2 Stainless
WF26479
£0.00
M2.5 x 25mm Torx Pan Screw in A2 Stainless
WF26480
£0.00
M2.5 x 28mm Torx Pan Screw in A2 Stainless
WF26481
£0.00
M2.5 x 30mm Torx Pan Screw in A2 Stainless
WF26482
£0.00
Prices are subject to quantity discounts based on a sliding scale. Enter the desired quantity in the relevant box in the table above. This will automatically calculate a line price indicating the applicable rate for the quantities selected. All prices shown exclude VAT.
technical drawing of Torx Pan Head Screws Sim. DIN 7985
Technical Summary
d nominal diameter M2.5
thread pitch thread pitch 0.45
dk head diameter 5
k head height 2.0
s drive size T 8
Standard ISO 14583 (DIN 7985)
all dimensions in millimetres (mm)
Datasheet
