Home   /   Bolts and Machine Screws - Metric   /   M3 Torx Button Screws in A2 Stainless Steel

M3 Torx Button Screws in A2 Stainless Steel

Also known as star, 6 lobe, and hexalobular internal. Torx screws are commonly found on cars, motorcycles, bicycle brake systems, hard disk drives, computer systems and consumer electronics and are becoming increasingly popular. Once, they were typically used in applications requiring tamper resistance; as drivers became more common, tamper-resistant variants were developed. The Torx design allows for a higher torque to be exerted than a similarly sized conventional hex socket head. This button head variant is an attractive screw, typically used where aesthetics are important, or where a lower profile domed finish is required.

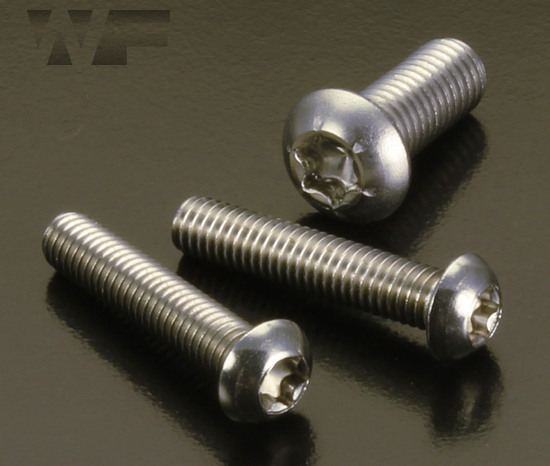

Torx Button Screws in A2 image

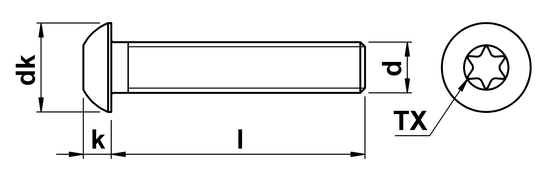

technical drawing of Torx Button Screws
Technical Summary
d nominal diameter M3
thread pitch thread pitch 0.50
dk head diameter 5.7
k max. maximum head height 1.65
s drive size T 10
Standard Sim. ISO 7380
all dimensions in millimetres (mm)
Datasheet
< View All Sizes
Description Sale Qtys Qty Price Breakdown Despatch Estimate
M3 x 3mm Torx Button Screw in A2 Stainless
WF33606
£0.00
M3 x 4mm Torx Button Screw in A2 Stainless
WF33607
£0.00
M3 x 5mm Torx Button Screw in A2 Stainless
WF33608
£0.00
M3 x 6mm Torx Button Screw in A2 Stainless
WF33609
£0.00
M3 x 8mm Torx Button Screw in A2 Stainless
WF33610
£0.00
M3 x 10mm Torx Button Screw in A2 Stainless
WF33611
£0.00
M3 x 12mm Torx Button Screw in A2 Stainless
WF33612
£0.00
M3 x 14mm Torx Button Screw in A2 Stainless
WF33613
£0.00
M3 x 16mm Torx Button Screw in A2 Stainless
WF33614
£0.00
M3 x 18mm Torx Button Screw in A2 Stainless
WF33615
£0.00
M3 x 20mm Torx Button Screw in A2 Stainless
WF33616
£0.00
M3 x 22mm Torx Button Screw in A2 Stainless
WF33617
£0.00
M3 x 25mm Torx Button Screw in A2 Stainless
WF33618
£0.00
M3 x 30mm Torx Button Screw in A2 Stainless
WF33619
£0.00
M3 x 35mm Torx Button Screw in A2 Stainless
WF33620
£0.00
M3 x 40mm Torx Button Screw in A2 Stainless
WF33621
£0.00
Prices are subject to quantity discounts based on a sliding scale. Enter the desired quantity in the relevant box in the table above. This will automatically calculate a line price indicating the applicable rate for the quantities selected. All prices shown exclude VAT.
technical drawing of Torx Button Screws
Technical Summary
d nominal diameter M3
thread pitch thread pitch 0.50
dk head diameter 5.7
k max. maximum head height 1.65
s drive size T 10
Standard Sim. ISO 7380
all dimensions in millimetres (mm)
Datasheet
