M2.5 Slotted Raised Countersunk Machine Screws DIN 964 in A2 Stainless Steel

A raised countersunk headed screw offering an attractive finish. Always fully threaded, and includes an old style slot drive for fitting.

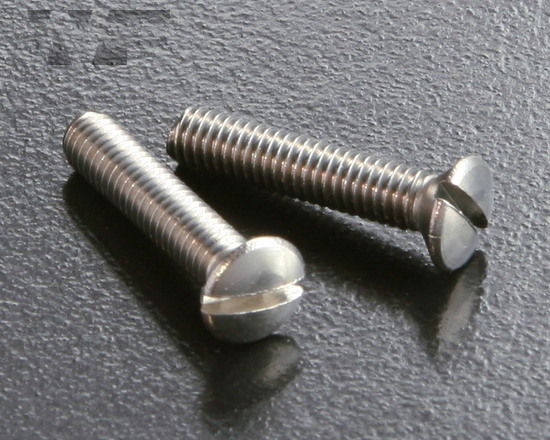

Slotted Raised Countersunk Machine Screws DIN 964 in A2 image

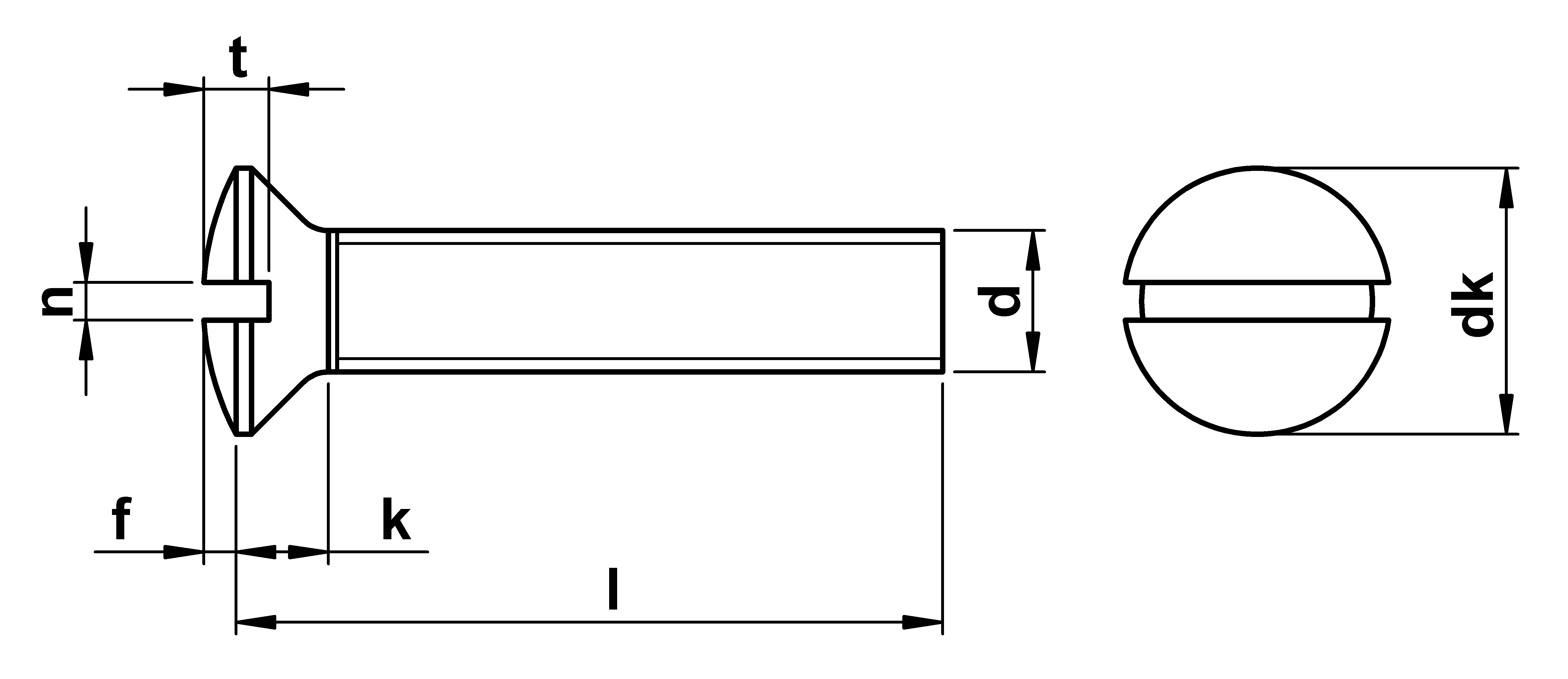

technical drawing of Slotted Raised Countersunk Machine Screws DIN 964

Technical Summary

nominal diameter

M2.5

thread pitch

0.45

dk max.

maximum head diameter

4.7

dome height

0.60

k max.

maximum head height

1.50

slot thickness

0.6

t min.

minimum recess depth

1.0

b min.

minimum thread length

drive size

0.6X3.5

Standard

DIN 964

all dimensions in millimetres (mm)

				DIN 964 Standard HTML
				DIN 964 Standard PDF

< View All Sizes

Description	Sale Qtys	Qty	Price	Breakdown	Despatch Estimate
M2.5 x 5mm Machine Screw Slotted Raised Countersunk in A2 Stainless WF39592			£0.00
M2.5 x 6mm Machine Screw Slotted Raised Countersunk in A2 Stainless WF39593			£0.00
M2.5 x 8mm Machine Screw Slotted Raised Countersunk in A2 Stainless WF39594			£0.00
M2.5 x 10mm Machine Screw Slotted Raised Countersunk in A2 Stainless WF39586			£0.00
M2.5 x 12mm Machine Screw Slotted Raised Countersunk in A2 Stainless WF39587			£0.00
M2.5 x 14mm Machine Screw Slotted Raised Countersunk in A2 Stainless WF39588			£0.00
M2.5 x 16mm Machine Screw Slotted Raised Countersunk in A2 Stainless WF39589			£0.00
M2.5 x 18mm Machine Screw Slotted Raised Countersunk in A2 Stainless WF39590			£0.00
M2.5 x 20mm Machine Screw Slotted Raised Countersunk in A2 Stainless WF39591			£0.00

M2.5 x 5mm Machine Screw Slotted Raised Countersunk in A2 Stainless
WF39592

M2.5 x 6mm Machine Screw Slotted Raised Countersunk in A2 Stainless
WF39593

M2.5 x 8mm Machine Screw Slotted Raised Countersunk in A2 Stainless
WF39594

M2.5 x 10mm Machine Screw Slotted Raised Countersunk in A2 Stainless
WF39586

M2.5 x 12mm Machine Screw Slotted Raised Countersunk in A2 Stainless
WF39587

M2.5 x 14mm Machine Screw Slotted Raised Countersunk in A2 Stainless
WF39588

M2.5 x 16mm Machine Screw Slotted Raised Countersunk in A2 Stainless
WF39589

M2.5 x 18mm Machine Screw Slotted Raised Countersunk in A2 Stainless
WF39590

M2.5 x 20mm Machine Screw Slotted Raised Countersunk in A2 Stainless
WF39591

Prices are subject to quantity discounts based on a sliding scale. Enter the desired quantity in the relevant box in the table above. This will automatically calculate a line price indicating the applicable rate for the quantities selected. All prices shown exclude VAT.
