M2 Slotted Pan Head Machine Screws DIN 85 in A2 Stainless Steel

Similar to DIN 84, but with a larger head diameter and a slightly different head profile. Manufactured to ISO 1580 or DIN 85. Please note that due to manufacturing limitations, all nylon variants of these items are only "similar to" and not "in absolute accordance with" the standard specified.

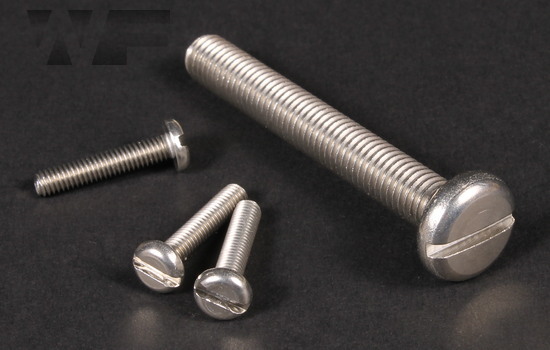

Slotted Pan Head Machine Screws DIN 85 in A2 image

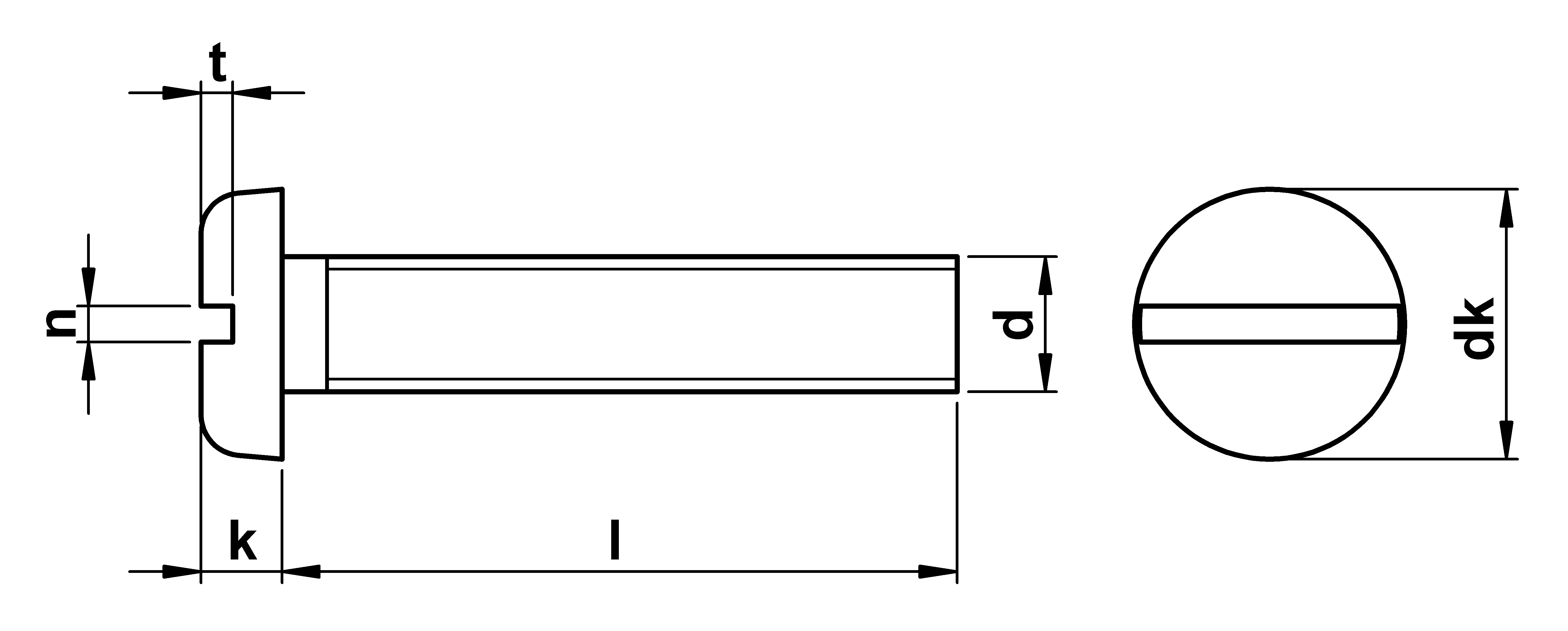

technical drawing of Slotted Pan Head Machine Screws DIN 85

Technical Summary

nominal diameter

thread pitch

0.40

head diameter

4.0

head height

1.3

slot thickness

0.5

recess depth

0.4

drive size

0.5X3.0

Standard

ISO 1580 (DIN 85)

all dimensions in millimetres (mm)

				DIN 85 Standard HTML
				DIN 85 Standard PDF

< View All Sizes

Description	Sale Qtys	Qty	Price	Breakdown	Despatch Estimate
M2 x 3mm Machine Screw Slotted Pan in A2 Stainless WF12133			£0.00
M2 x 4mm Machine Screw Slotted Pan in A2 Stainless WF12134			£0.00
M2 x 5mm Machine Screw Slotted Pan in A2 Stainless WF12135			£0.00
M2 x 6mm Machine Screw Slotted Pan in A2 Stainless WF12136			£0.00
M2 x 8mm Machine Screw Slotted Pan in A2 Stainless WF12137			£0.00
M2 x 10mm Machine Screw Slotted Pan in A2 Stainless WF12138			£0.00
M2 x 12mm Machine Screw Slotted Pan in A2 Stainless WF12139			£0.00
M2 x 14mm Machine Screw Slotted Pan in A2 Stainless WF26430			£0.00
M2 x 16mm Machine Screw Slotted Pan in A2 Stainless WF12140			£0.00
M2 x 18mm Machine Screw Slotted Pan in A2 Stainless WF26431			£0.00
M2 x 20mm Machine Screw Slotted Pan in A2 Stainless WF12141			£0.00
M2 x 30mm Machine Screw Slotted Pan in A2 Stainless WF26433			£0.00

M2 x 3mm Machine Screw Slotted Pan in A2 Stainless
WF12133

M2 x 4mm Machine Screw Slotted Pan in A2 Stainless
WF12134

M2 x 5mm Machine Screw Slotted Pan in A2 Stainless
WF12135

M2 x 6mm Machine Screw Slotted Pan in A2 Stainless
WF12136

M2 x 8mm Machine Screw Slotted Pan in A2 Stainless
WF12137

M2 x 10mm Machine Screw Slotted Pan in A2 Stainless
WF12138

M2 x 12mm Machine Screw Slotted Pan in A2 Stainless
WF12139

M2 x 14mm Machine Screw Slotted Pan in A2 Stainless
WF26430

M2 x 16mm Machine Screw Slotted Pan in A2 Stainless
WF12140

M2 x 18mm Machine Screw Slotted Pan in A2 Stainless
WF26431

M2 x 20mm Machine Screw Slotted Pan in A2 Stainless
WF12141

M2 x 30mm Machine Screw Slotted Pan in A2 Stainless
WF26433

Prices are subject to quantity discounts based on a sliding scale. Enter the desired quantity in the relevant box in the table above. This will automatically calculate a line price indicating the applicable rate for the quantities selected. All prices shown exclude VAT.
