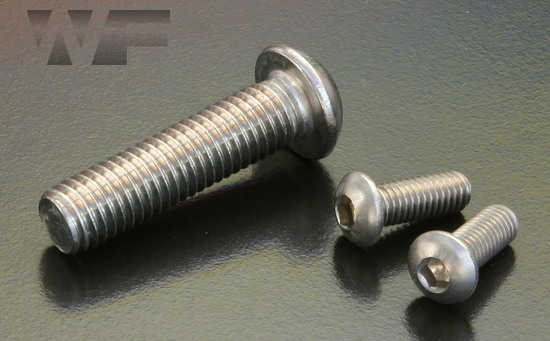

M2 Socket Head Button Screws ISO 7380 part 1 in A2 Stainless Steel

A popular and attractive socket head screw, typically used where aesthetics are important, or where a lower profile domed finish is required. The hex drive is generally smaller than other hex driven ranges and thus the ultimate tightening torque is reduced. Manufactured to ISO 7380, and almost always fully threaded.

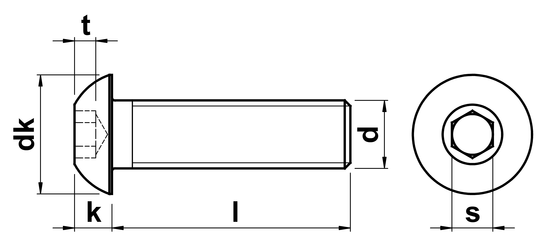

technical drawing of Socket Head Button Screws ISO 7380 part 1

Technical Summary

nominal diameter

thread pitch

0.40

head diameter

3.4

k max.

maximum head height

1.3

drive size

1.3

recess depth

Standard

ISO 7380

all dimensions in millimetres (mm)

				ISO 7380-1 Standard HTML
				ISO 7380-1 Standard PDF

< View All Sizes

Description	Sale Qtys	Qty	Price	Breakdown	Despatch Estimate
M2 x 3mm Socket Head Button (Dome) Screw in A2 Stainless WF79512			£0.00
M2 x 5mm Socket Head Button (Dome) Screw in A2 Stainless WF61663			£0.00
M2 x 6mm Socket Head Button (Dome) Screw in A2 Stainless WF79515			£0.00
M2 x 8mm Socket Head Button (Dome) Screw in A2 Stainless WF79516			£0.00
M2 x 10mm Socket Head Button (Dome) Screw in A2 Stainless WF79507			£0.00
M2 x 12mm Socket Head Button (Dome) Screw in A2 Stainless WF79508			£0.00
M2 x 14mm Socket Head Button (Dome) Screw in A2 Stainless WF79509			£0.00
M2 x 16mm Socket Head Button (Dome) Screw in A2 Stainless WF79510			£0.00
M2 x 20mm Socket Head Button (Dome) Screw in A2 Stainless WF79511			£0.00

M2 x 3mm Socket Head Button (Dome) Screw in A2 Stainless
WF79512

M2 x 5mm Socket Head Button (Dome) Screw in A2 Stainless
WF61663

M2 x 6mm Socket Head Button (Dome) Screw in A2 Stainless
WF79515

M2 x 8mm Socket Head Button (Dome) Screw in A2 Stainless
WF79516

M2 x 10mm Socket Head Button (Dome) Screw in A2 Stainless
WF79507

M2 x 12mm Socket Head Button (Dome) Screw in A2 Stainless
WF79508

M2 x 14mm Socket Head Button (Dome) Screw in A2 Stainless
WF79509

M2 x 16mm Socket Head Button (Dome) Screw in A2 Stainless
WF79510

M2 x 20mm Socket Head Button (Dome) Screw in A2 Stainless
WF79511

Prices are subject to quantity discounts based on a sliding scale. Enter the desired quantity in the relevant box in the table above. This will automatically calculate a line price indicating the applicable rate for the quantities selected. All prices shown exclude VAT.
