M2.5 Phillips Csk Machine Screws DIN 965 H in A2 Stainless Steel

A popular machine screw with a phillips drive. The countersunk head is typically used in conjunction with a countersunk hole providing a flush, snag free fit. These items are always fully threaded. Conforms to DIN 965. Typically found on consumer electronics and other small machinery where high torque fasteners are not necessary.

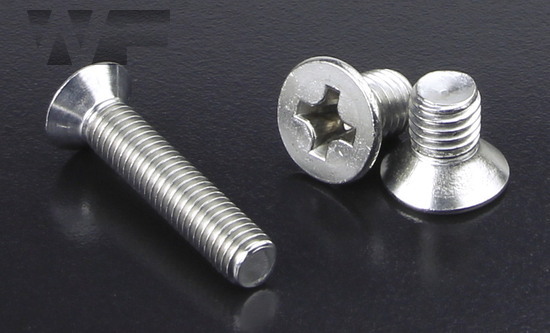

Phillips Csk Machine Screws DIN 965 H in A2 image

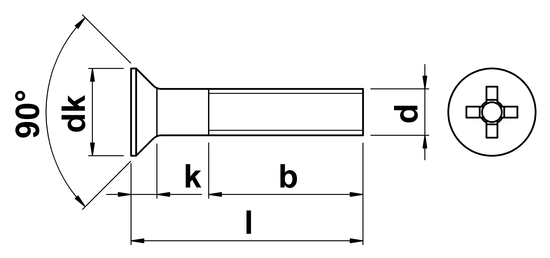

technical drawing of Phillips Csk Machine Screws DIN 965 H

Technical Summary

nominal diameter

M2.5

thread pitch

0.45

head diameter

4.7

k max.

maximum head height

1.50

b min.

minimum thread length

drive size

P 1

Standard

DIN 965H

all dimensions in millimetres (mm)

				DIN 965 Standard HTML
				DIN 965 Standard PDF

< View All Sizes

Description	Sale Qtys	Qty	Price	Breakdown	Despatch Estimate
M2.5 x 3mm Machine Screw Phillips Countersunk in A2 Stainless WF77568			£0.00
M2.5 x 4mm Machine Screw Phillips Countersunk in A2 Stainless WF1898			£0.00
M2.5 x 5mm Machine Screw Phillips Countersunk in A2 Stainless WF1899			£0.00
M2.5 x 6mm Machine Screw Phillips Countersunk in A2 Stainless WF1900			£0.00
M2.5 x 8mm Machine Screw Phillips Countersunk in A2 Stainless WF1901			£0.00
M2.5 x 10mm Machine Screw Phillips Countersunk in A2 Stainless WF1902			£0.00
M2.5 x 12mm Machine Screw Phillips Countersunk in A2 Stainless WF1903			£0.00
M2.5 x 14mm Machine Screw Phillips Countersunk in A2 Stainless WF45541			£0.00
M2.5 x 16mm Machine Screw Phillips Countersunk in A2 Stainless WF1904			£0.00
M2.5 x 18mm Machine Screw Phillips Countersunk in A2 Stainless WF45543			£0.00
M2.5 x 20mm Machine Screw Phillips Countersunk in A2 Stainless WF1905			£0.00
M2.5 x 22mm Machine Screw Phillips Countersunk in A2 Stainless WF77566			£0.00
M2.5 x 25mm Machine Screw Phillips Countersunk in A2 Stainless WF1906			£0.00

M2.5 x 3mm Machine Screw Phillips Countersunk in A2 Stainless
WF77568

M2.5 x 4mm Machine Screw Phillips Countersunk in A2 Stainless
WF1898

M2.5 x 5mm Machine Screw Phillips Countersunk in A2 Stainless
WF1899

M2.5 x 6mm Machine Screw Phillips Countersunk in A2 Stainless
WF1900

M2.5 x 8mm Machine Screw Phillips Countersunk in A2 Stainless
WF1901

M2.5 x 10mm Machine Screw Phillips Countersunk in A2 Stainless
WF1902

M2.5 x 12mm Machine Screw Phillips Countersunk in A2 Stainless
WF1903

M2.5 x 14mm Machine Screw Phillips Countersunk in A2 Stainless
WF45541

M2.5 x 16mm Machine Screw Phillips Countersunk in A2 Stainless
WF1904

M2.5 x 18mm Machine Screw Phillips Countersunk in A2 Stainless
WF45543

M2.5 x 20mm Machine Screw Phillips Countersunk in A2 Stainless
WF1905

M2.5 x 22mm Machine Screw Phillips Countersunk in A2 Stainless
WF77566

M2.5 x 25mm Machine Screw Phillips Countersunk in A2 Stainless
WF1906

Prices are subject to quantity discounts based on a sliding scale. Enter the desired quantity in the relevant box in the table above. This will automatically calculate a line price indicating the applicable rate for the quantities selected. All prices shown exclude VAT.
