M10 Hex Head Flange Bolts with Serrations EN 1665 / DIN 6921 in A2 Stainless Steel

The DIN 6921 or EN 1665 flange bolt is a hexagon headed bolt or screw incorporating a flange, negating the need for a washer. Flange bolts are a more attractive alternative to their DIN 931 and DIN 933 hex driven counterparts. Typically used where the flange offers protection for the bolted component and where the driving tool may otherwise scratch its surface. Generally manufactured with a full thread, though occasionally some stock may include a partially threaded shank. This variant includes serrations under the head.

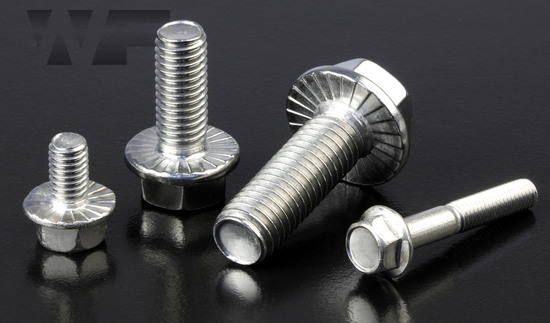

Hex Head Flange Bolts with Serrations EN 1665 / DIN 6921 in A2 image

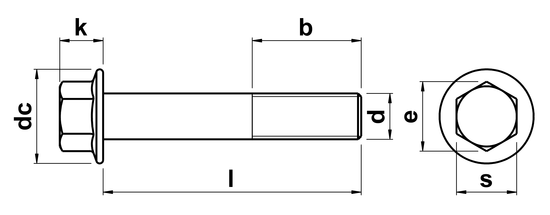

technical drawing of Hex Head Flange Bolts with Serrations EN 1665 / DIN 6921
Technical Summary
d nominal diameter M10
thread pitch thread pitch 1.50
b min. minimum thread length 26
k max. maximum head height 9.2
s drive size 15
dc flange diameter 22.3
e width across corners 16.50
Standard DIN 6921
all dimensions in millimetres (mm)
Datasheet
< View All Sizes
Description Sale Qtys Qty Price Breakdown Despatch Estimate
M10 x 16mm Serrated Flange Bolt Hex Head in A2 Stainless
WF63694
£0.00
M10 x 20mm Serrated Flange Bolt Hex Head in A2 Stainless
WF56374
£0.00
M10 x 25mm Serrated Flange Bolt Hex Head in A2 Stainless
WF56376
£0.00
M10 x 30mm Serrated Flange Bolt Hex Head in A2 Stainless
WF56378
£0.00
M10 x 35mm Serrated Flange Bolt Hex Head in A2 Stainless
WF56380
£0.00
M10 x 40mm Serrated Flange Bolt Hex Head in A2 Stainless
WF56382
£0.00
M10 x 45mm Serrated Flange Bolt Hex Head in A2 Stainless
WF63696
£0.00
M10 x 50mm Serrated Flange Bolt Hex Head in A2 Stainless
WF56384
£0.00
M10 x 60mm Serrated Flange Bolt Hex Head in A2 Stainless
WF56386
£0.00
M10 x 70mm Serrated Flange Bolt Hex Head in A2 Stainless
WF63698
£0.00
M10 x 80mm Serrated Flange Bolt Hex Head in A2 Stainless
WF63700
£0.00
Prices are subject to quantity discounts based on a sliding scale. Enter the desired quantity in the relevant box in the table above. This will automatically calculate a line price indicating the applicable rate for the quantities selected. All prices shown exclude VAT.
technical drawing of Hex Head Flange Bolts with Serrations EN 1665 / DIN 6921
Technical Summary
d nominal diameter M10
thread pitch thread pitch 1.50
b min. minimum thread length 26
k max. maximum head height 9.2
s drive size 15
dc flange diameter 22.3
e width across corners 16.50
Standard DIN 6921
all dimensions in millimetres (mm)
