M8 Coach Bolts DIN 603 with partial thread in A2 Stainless Steel

Generally used in timber to timber and timber to metal construction, these bolts incorporate a square neck to grip the hole in the timber when fitting, and therefore negates the need for any drive recess to be included on top of the head. Supplied to DIN 603. Manufactured with a partially threaded shank. Nuts are supplied seperately, unlike the mild steel versions available elsewhere on the site.

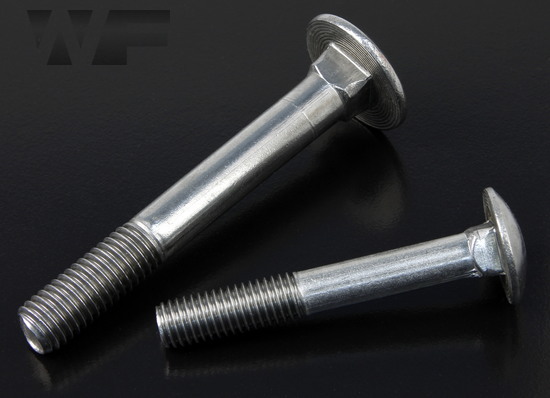

Coach Bolts DIN 603 with partial thread in A2 image

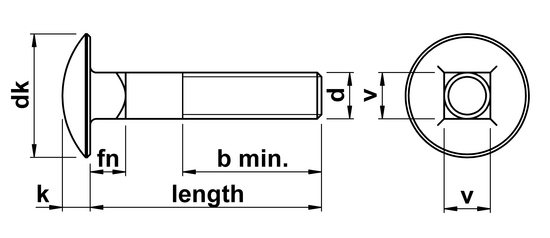

technical drawing of Coach Bolts DIN 603 with partial thread
Technical Summary
d nominal diameter M8
thread pitch thread pitch 1.25
dk min. minimum head diameter 19.35
fn square neck length 4.40
k min. minimum head height 4.12
v min. minimum head cylinder height 7.42
b min. <= 125 min. thread (bolt lengths <= 125) 22
b min. > 125 min. thread (bolt lengths > 125) 28
Standard DIN 603
all dimensions in millimetres (mm)
html graphic DIN 603 Standard HTML
pdf graphic DIN 603 Standard PDF
< View All Sizes
