M16 Coach Bolts DIN 603 with full thread in A2 Stainless Steel

Generally used in timber to timber and timber to metal construction, these bolts incorporate a square neck to grip the hole in the timber when fitting, and therefore negates the need for any drive recess to be included on top of the head. Supplied to DIN 603. Manufactured with a fully threaded shank. Nuts are supplied seperately, unlike the mild steel versions available elsewhere on the site.

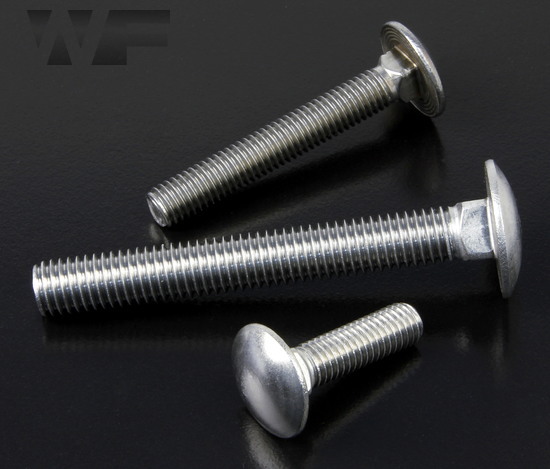

Coach Bolts DIN 603 with full thread in A2 image

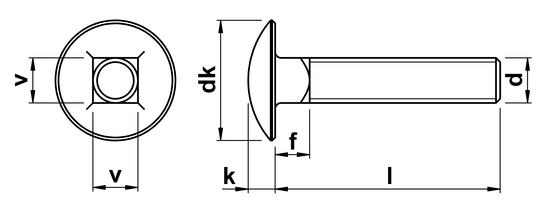

technical drawing of Coach Bolts DIN 603 with full thread
Technical Summary
d nominal diameter M16
thread pitch thread pitch 2.00
dk min. minimum head diameter 37.20
fn square neck length 11.10
k min. minimum head height 8.05
v min. minimum head cylinder height 15.30
Standard DIN 603
all dimensions in millimetres (mm)
html graphic DIN 603 Standard HTML
pdf graphic DIN 603 Standard PDF
< View All Sizes
Description Sale Qtys Qty Price Breakdown Despatch Estimate
M16 x 35mm Coach Bolt / Carriage Bolt Full Thread in A2 Stainless
WF61209
£0.00
M16 x 40mm Coach Bolt / Carriage Bolt Full Thread in A2 Stainless
WF61101
£0.00
M16 x 45mm Coach Bolt / Carriage Bolt Full Thread in A2 Stainless
WF61102
£0.00
M16 x 50mm Coach Bolt / Carriage Bolt Full Thread in A2 Stainless
WF61103
£0.00
M16 x 60mm Coach Bolt / Carriage Bolt Full Thread in A2 Stainless
WF61104
£0.00
M16 x 65mm Coach Bolt / Carriage Bolt Full Thread in A2 Stainless
WF61105
£0.00
M16 x 70mm Coach Bolt / Carriage Bolt Full Thread in A2 Stainless
WF61106
£0.00
M16 x 80mm Coach Bolt / Carriage Bolt Full Thread in A2 Stainless
WF61107
£0.00
M16 x 90mm Coach Bolt / Carriage Bolt Full Thread in A2 Stainless
WF61108
£0.00
M16 x 100mm Coach Bolt / Carriage Bolt Full Thread in A2 Stainless
WF61109
£0.00
M16 x 120mm Coach Bolt / Carriage Bolt Full Thread in A2 Stainless
WF61110
£0.00
M16 x 140mm Coach Bolt / Carriage Bolt Full Thread in A2 Stainless
WF61111
£0.00
M16 x 150mm Coach Bolt / Carriage Bolt Full Thread in A2 Stainless
WF61112
£0.00
Prices are subject to quantity discounts based on a sliding scale. Enter the desired quantity in the relevant box in the table above. This will automatically calculate a line price indicating the applicable rate for the quantities selected. All prices shown exclude VAT.
technical drawing of Coach Bolts DIN 603 with full thread
Technical Summary
d nominal diameter M16
thread pitch thread pitch 2.00
dk min. minimum head diameter 37.20
fn square neck length 11.10
k min. minimum head height 8.05
v min. minimum head cylinder height 15.30
Standard DIN 603
all dimensions in millimetres (mm)
html graphic DIN 603 Standard HTML
pdf graphic DIN 603 Standard PDF
