2.5mm diameter R-Clips (Euro Pattern) in A2 Stainless Steel

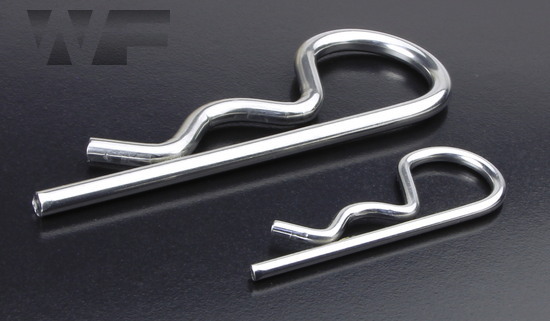

R Clips, also known as R Keys, R Pins or Hitch Pins. Often used to secure ends of round shafts such as clevis pins or axles. Re-usable and made from A2 grade stainless steel, they can be viewed as a better option than split pins as they are easier to remove whilst essentially doing the same job.

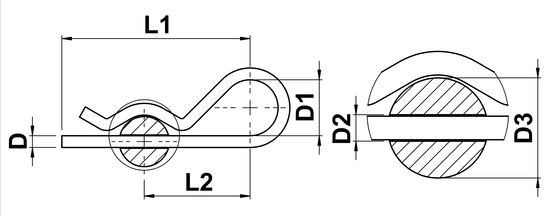

technical drawing of R-Clips (Euro Pattern)

Technical Summary

diameter

2.5

approx. overall length

dimension 1

11 (aprx.)

D2 (to suit hole)

3.0

D3 (to suit shaft)

10 - 16

length 1

46 (aprx.)

length 2

24 (aprx.)

all dimensions in millimetres (mm)

Datasheet

< View All Sizes

Description	Sale Qtys	Qty	Price	Breakdown	Despatch Estimate
R Clip (Beta Pin) Euro Pattern 2.5 x 54, for 10-16mm Shaft in A2 Stainless WF49118			£0.00

R Clip (Beta Pin) Euro Pattern 2.5 x 54, for 10-16mm Shaft in A2 Stainless
WF49118

Prices are subject to quantity discounts based on a sliding scale. Enter the desired quantity in the relevant box in the table above. This will automatically calculate a line price indicating the applicable rate for the quantities selected. All prices shown exclude VAT.
