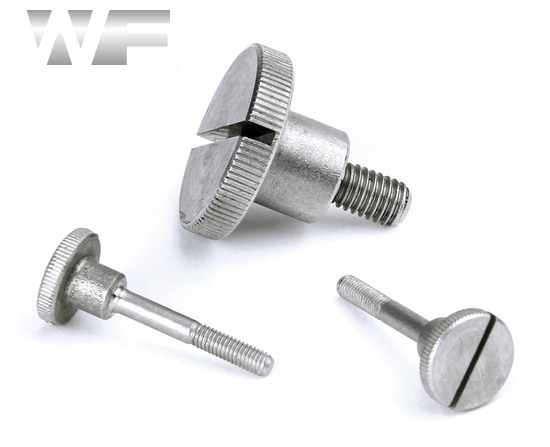

M6 Slotted Thumb Screws High Type (DIN 465) in A1 Stainless Steel

Slotted Thumb Screws or Slotted Knurled Knob Screws are designed primarily to be tightened and loosened by hand, without the need for a screwdriver or ratchet, but this version comes with a slot in the head for a standard slotted screwdriver. The 'knurled' feature of the head makes this type of screw ideal for use where conditions can be challenging such as food preparation or clean room operations. Manufactured to DIN 465.

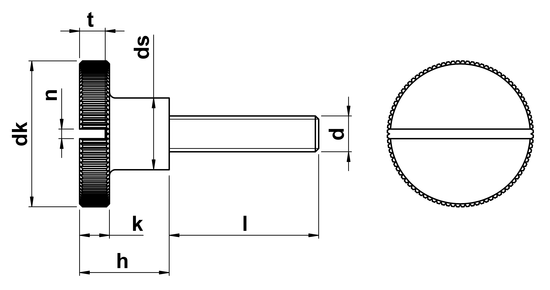

technical drawing of Slotted Thumb Screws High Type (DIN 465)

Technical Summary

nominal diameter

thread pitch

1.00

head diameter

shoulder width

height

15.0

head height

5.0

slot thickness

1.6

t min.

minimum recess depth

3.5

drive size

1.6X9.0

Standard

DIN 465

all dimensions in millimetres (mm)

Datasheet

< View All Sizes

Description	Sale Qtys	Qty	Price	Breakdown	Despatch Estimate
M6 x 10mm Slotted Thumb Screw (High Type) in A1 Stainless WF49440			£0.00
M6 x 12mm Slotted Thumb Screw (High Type) in A1 Stainless WF49441			£0.00
M6 x 16mm Slotted Thumb Screw (High Type) in A1 Stainless WF49442			£0.00
M6 x 20mm Slotted Thumb Screw (High Type) in A1 Stainless WF49422			£0.00

M6 x 10mm Slotted Thumb Screw (High Type) in A1 Stainless
WF49440

M6 x 12mm Slotted Thumb Screw (High Type) in A1 Stainless
WF49441

M6 x 16mm Slotted Thumb Screw (High Type) in A1 Stainless
WF49442

M6 x 20mm Slotted Thumb Screw (High Type) in A1 Stainless
WF49422

Prices are subject to quantity discounts based on a sliding scale. Enter the desired quantity in the relevant box in the table above. This will automatically calculate a line price indicating the applicable rate for the quantities selected. All prices shown exclude VAT.
