This product guide contains the specification for Shackle with Swivel Fork Fork Hex as available from Westfield Fasteners. The basis of this specification is the ??? standard ???.
The shackle ends spin on a central pin which the nuts are welded to. These A4 marine grade stainless steel swivel shackles are strong and durable.
This type of swivel shackle has a hex/socket drive on the jaw pins.

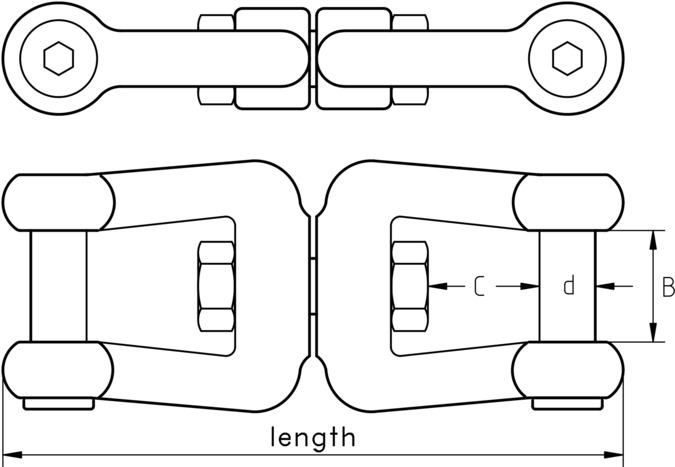

d | Length | B | C | Breaking Load(kg) | Working Load(kg) |
---|---|---|---|---|---|
6 | 66 | 12 | 12 | 935 | 235 |
8 | 94 | 16 | 16 | 1660 | 415 |
10 | 118 | 20 | 22 | 2590 | 648 |
13 | 152 | 26 | 28 | 3730 | 930 |
