4.5mm diameter QZ Pozi Pan Head Chipboard Screws in Bright Zinc Plated (BZP) Steel

High quality zinc plated wood screws from QZ, with a pozidriv pan head, fitted with a suitably sized pozi screwdriver or bit.

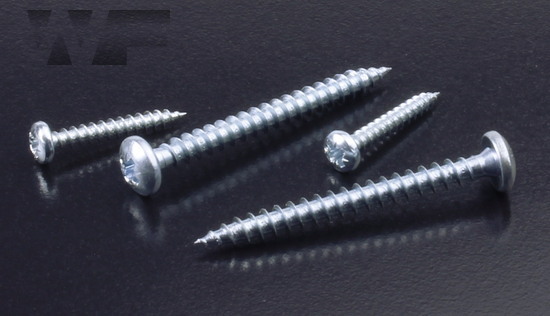

QZ Pozi Pan Head Chipboard Screws in BZP image

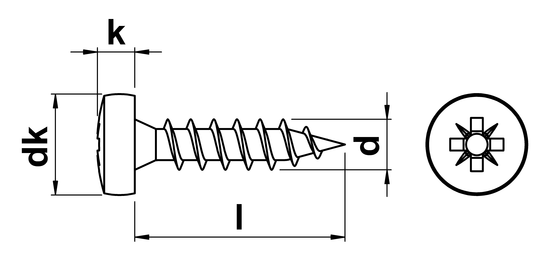

technical drawing of QZ Pozi Pan Head Chipboard Screws
Technical Summary
d nominal diameter 4.5
dk max. maximum head diameter 9
k head height 3.18
s drive size Z 2
all dimensions in millimetres (mm)
Datasheet
< View All Sizes
Prices are subject to quantity discounts based on a sliding scale. Enter the desired quantity in the relevant box in the table above. This will automatically calculate a line price indicating the applicable rate for the quantities selected. All prices shown exclude VAT.
technical drawing of QZ Pozi Pan Head Chipboard Screws
Technical Summary
d nominal diameter 4.5
dk max. maximum head diameter 9
k head height 3.18
s drive size Z 2
all dimensions in millimetres (mm)
Datasheet
