Carbine Hook Symmetrical Shape with Locking Nut in A4 Stainless Steel

Carbine Hook Symmetric Shape with Locking Nut - also referred to as a Snap Hook, Carabiner Hook, Carbine Clip or Spring Hook. Ideal for use in many Yachting/Boating applications such as rigging and roping; also used to attach objects to loops, eyes or thimbles. This version has a Locking Nut fitted to give a more secure fitment and ensuring against the Hook springing open. Manufactured in A4 grade Stainless Steel for excellent anti-corrosive properties. Please note that the spring itself is in A2 grade stainless.

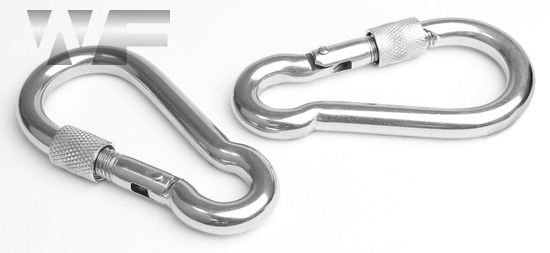

Carbine Hook Symmetrical Shape with Locking Nut in A4 image
technical drawing of Carbine Hook Symmetrical Shape with Locking Nut
Technical Summary
SizeLengthDAESafe Working Load (SWL)Min. Breaking Load (BL) kg
4 x 40 4046.54.560230
5 x 5050585.585345
6 x 6060696.5130520
7 x 7070710.57.5160640
8 x 80808128.5200795
10 x 10010010159.53001.200
11 x 1201201118163501.400
12 x 1401401220194201.680
13 x 1601601322254801.925
all dimensions in millimetres (mm)
Datasheet
