Chain Quick Link in A4 Stainless Steel

The Quick Link is ideal for any marine and outdoor environment. Its great for connecting chains, ropes and webbing. The precision screw provides tight and secure connection. Also used for hiking, camping, aeronautics, agriculture, architecture, military, parachuting and paragliding applications.

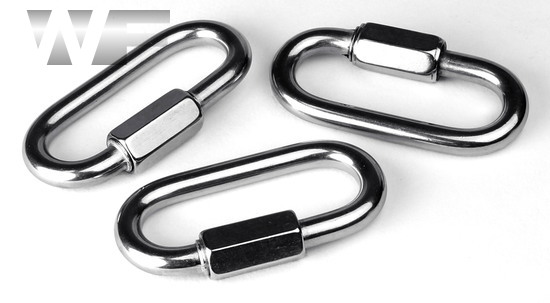

Chain Quick Link in A4 image

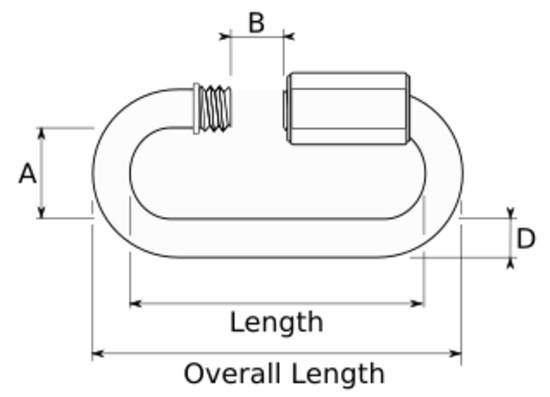

technical drawing of Chain Quick Link
Technical Summary
SizeDLengthABOverall Length (approx.)
4mm432125.540
5mm539136.549
6mm645147.557
8mm8581710.074
10mm10722112.092
12mm12812414.5105
all dimensions in millimetres (mm)
Datasheet
