M2.5 Torx Csk Head Screws Sim. ISO 10642 / ISO 14581 in A2 Stainless Steel

Also known as star, 6 lobe, and hexalobular internal. Torx screws are commonly found on cars, motorcycles, bicycle brake systems, hard disk drives, computer systems and consumer electronics and are becoming increasingly popular. Once, they were typically used in applications requiring tamper resistance; as drivers became more common, specific tamper-resistant variants were developed. The Torx design allows for a higher torque to be exerted than a similarly sized conventional hex socket head.

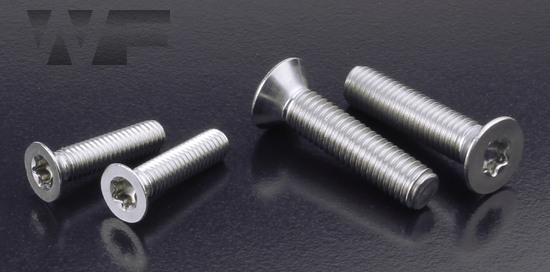

Torx Csk Head Screws Sim. ISO 10642 / ISO 14581 in A2 image

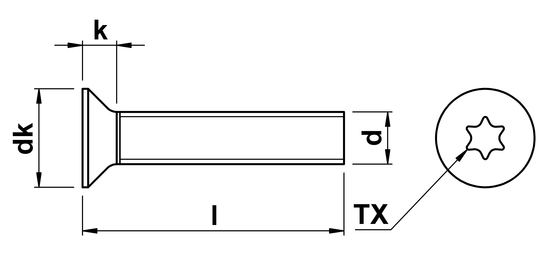

technical drawing of Torx Csk Head Screws Sim. ISO 10642 / ISO 14581
Technical Summary
d nominal diameter M2.5
thread pitch thread pitch 0.45
TX key size T8
dk max. maximum head diameter 4.70
dk min. minimum head diameter 4.40
k head height 1.50
Standard ISO 14581
all dimensions in millimetres (mm)
Datasheet
< View All Sizes
Description Sale Qtys Qty Price Breakdown Despatch Estimate
M2.5 x 3mm Torx Countersunk Screw in A2 Stainless
WF26594
£0.00
M2.5 x 4mm Torx Countersunk Screw in A2 Stainless
WF26595
£0.00
M2.5 x 5mm Torx Countersunk Screw in A2 Stainless
WF26596
£0.00
M2.5 x 6mm Torx Countersunk Screw in A2 Stainless
WF26597
£0.00
M2.5 x 8mm Torx Countersunk Screw in A2 Stainless
WF26598
£0.00
M2.5 x 10mm Torx Countersunk Screw in A2 Stainless
WF26599
£0.00
M2.5 x 12mm Torx Countersunk Screw in A2 Stainless
WF26600
£0.00
M2.5 x 14mm Torx Countersunk Screw in A2 Stainless
WF26601
£0.00
M2.5 x 16mm Torx Countersunk Screw in A2 Stainless
WF26602
£0.00
M2.5 x 18mm Torx Countersunk Screw in A2 Stainless
WF26603
£0.00
M2.5 x 20mm Torx Countersunk Screw in A2 Stainless
WF26604
£0.00
M2.5 x 22mm Torx Countersunk Screw in A2 Stainless
WF26605
£0.00
M2.5 x 25mm Torx Countersunk Screw in A2 Stainless
WF26606
£0.00
Prices are subject to quantity discounts based on a sliding scale. Enter the desired quantity in the relevant box in the table above. This will automatically calculate a line price indicating the applicable rate for the quantities selected. All prices shown exclude VAT.
technical drawing of Torx Csk Head Screws Sim. ISO 10642 / ISO 14581
Technical Summary
d nominal diameter M2.5
thread pitch thread pitch 0.45
TX key size T8
dk max. maximum head diameter 4.70
dk min. minimum head diameter 4.40
k head height 1.50
Standard ISO 14581
all dimensions in millimetres (mm)
Datasheet
