8-32 inch UNC Socket Head Cap Screws ASME B18.3-2012 in A2 Stainless Steel

Also known as an Allen screw or Allen bolt, or simply a cap screw, socket head cap screws are a more modern alternative standard machine fastener to the standard hexagon headed bolt or setscrew, as found on much modern machinery. A hex key (otherwise known as an Allen key) is required to fit these fasteners. Conforming to ASME/ANSI B18.3, the contact surfaces of this screw or bolt are protected from external damage. Generally manufactured with a partial thread beyond a certain length and nominal diameter combination, but occasionally some stock may include a fully threaded shank at the same combination.
Image of UNC Socket Head Cap Screws ASME B18.3-2012 in A2 image

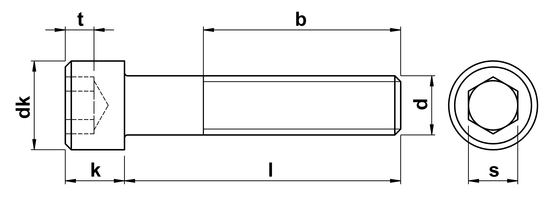

technical drawing of UNC Socket Head Cap Screws ASME B18.3-2012
Technical Summary
d nominal diameter 8-32
tpi threads per inch 32
dk head diameter 0.270
k head height 0.164
t recess depth 0.077
s drive size 9/64
b minimum thread length 0.88-1.19
Standard ASME B18.3/ASTM F837(CW)
all dimensions in inches
