M3 Pin Torx Countersunk Security Screws in A2 Stainless Steel

A tamper resistant torx driven screw requiring specialist drive tooling to fit and remove. The countersunk head is typically used in conjunction with a countersunk hole providing a flush, snag free fit. Great for anti-vandalism solutions or where a degree of security is required. Also known as Star Drive or Six Lobe Drive. Please call us if the multi-tool security drive bits are required.

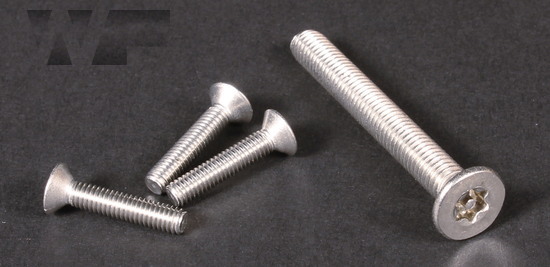

Pin Torx Countersunk Security Screws in A2 image

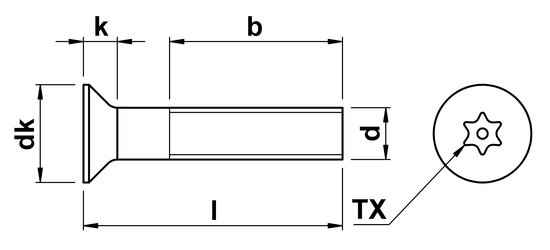

technical drawing of Pin Torx Countersunk Security Screws
Technical Summary
d nominal diameter M3
thread pitch thread pitch 0.50
dk head diameter 6
k head height 1.7
b min. minimum thread length -
s drive size T10
Standard ISO 10642 (DIN 7991)
all dimensions in millimetres (mm)
Datasheet
< View All Sizes
Prices are subject to quantity discounts based on a sliding scale. Enter the desired quantity in the relevant box in the table above. This will automatically calculate a line price indicating the applicable rate for the quantities selected. All prices shown exclude VAT.
technical drawing of Pin Torx Countersunk Security Screws
Technical Summary
d nominal diameter M3
thread pitch thread pitch 0.50
dk head diameter 6
k head height 1.7
b min. minimum thread length -
s drive size T10
Standard ISO 10642 (DIN 7991)
all dimensions in millimetres (mm)
Datasheet
