M3 Pin Torx Button Security Screws in A2 Stainless Steel

A tamper resistant screw requiring specialist Torx drive tooling to fit. This button head variant is an attractive screw, typically used where aesthetics are important, or where a lower profile domed finish is required. Uses include street furniture and garden equipment. Also known as a Star or 6 Lobe Drive. Please call us if the multi-tool security drive bits are required.

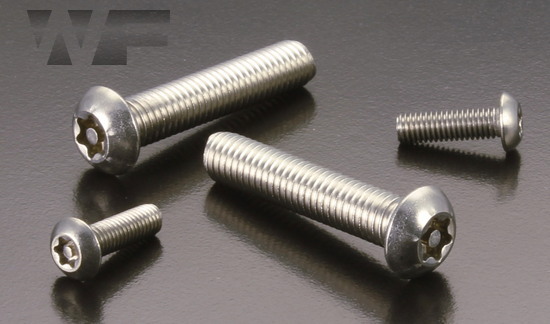

Pin Torx Button Security Screws in A2 image

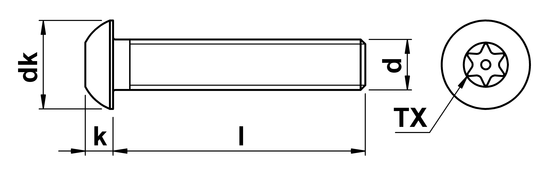

technical drawing of Pin Torx Button Security Screws
Technical Summary
d nominal diameter M3
thread pitch thread pitch 0.50
dk head diameter 5.5
k head height 1.6
s drive size T10
Standard ISO 7380
all dimensions in millimetres (mm)
Datasheet
< View All Sizes
Prices are subject to quantity discounts based on a sliding scale. Enter the desired quantity in the relevant box in the table above. This will automatically calculate a line price indicating the applicable rate for the quantities selected. All prices shown exclude VAT.
technical drawing of Pin Torx Button Security Screws
Technical Summary
d nominal diameter M3
thread pitch thread pitch 0.50
dk head diameter 5.5
k head height 1.6
s drive size T10
Standard ISO 7380
all dimensions in millimetres (mm)
