Home   /   UNC Bolts, Nuts and Washers   /   12-24 inch UNC Phillips Pan Head Machine Screws ASME B18.6.3 in A2 Stainless Steel

12-24 inch UNC Phillips Pan Head Machine Screws ASME B18.6.3 in A2 Stainless Steel

A Machine screw with a phillips drive, designed to be tightened with a screwdriver. Typically found on consumer electronics and other small machinery where high torque fasteners are not necessary. Conforms with ASME B18.6.3.

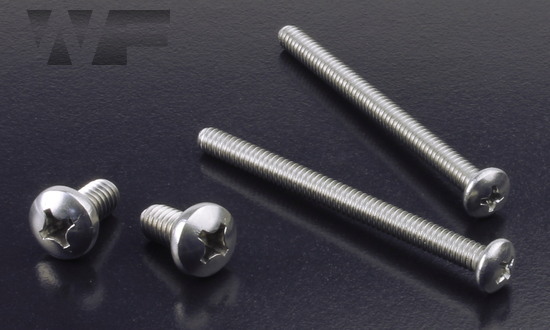

Image of UNC Phillips Pan Head Machine Screws ASME B18.6.3 in A2 image

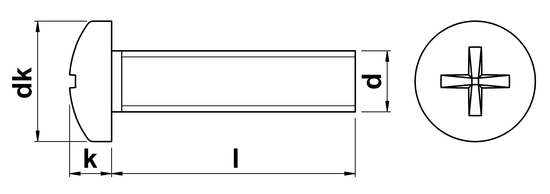

technical drawing of UNC Phillips Pan Head Machine Screws ASME B18.6.3
Technical Summary
d nominal diameter 12-24
tpi threads per inch 24
dk head diameter 0.425
k head height 0.151
s drive size 3
Standard ASME B18.6.3-2003
all dimensions in inches
Datasheet
< View All Sizes
Prices are subject to quantity discounts based on a sliding scale. Enter the desired quantity in the relevant box in the table above. This will automatically calculate a line price indicating the applicable rate for the quantities selected. All prices shown exclude VAT.
technical drawing of UNC Phillips Pan Head Machine Screws ASME B18.6.3
Technical Summary
d nominal diameter 12-24
tpi threads per inch 24
dk head diameter 0.425
k head height 0.151
s drive size 3
Standard ASME B18.6.3-2003
all dimensions in inches
