4.5mm diameter Torx Countersunk Chipboard Screws in A2 Stainless Steel

General purpose wood screws with a Torx drive; also known as star, 6 lobe, and hexalobular internal. The torx drive is designed to prevent "cam out", which makes them ideal for use with modern drill/drivers. The countersunk head is typically used in conjunction with a countersunk hole providing a flush, snag free fit. Please note that the head shape can vary between a countersunk, double countersunk, and bugle shape.

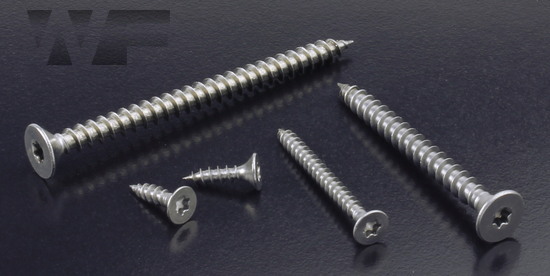

Torx Countersunk Chipboard Screws in A2 image

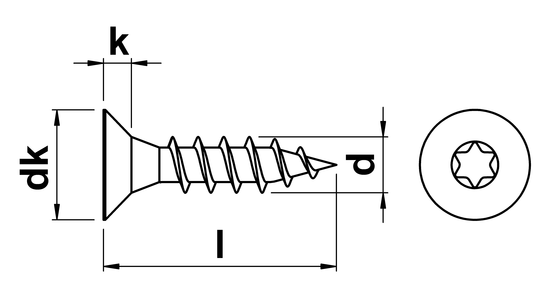

technical drawing of Torx Countersunk Chipboard Screws
Technical Summary
d nominal diameter 4.5
dk head diameter 9
k head height 2.25
s drive size T 20
all dimensions in millimetres (mm)
Datasheet
< View All Sizes
Description Sale Qtys Qty Price Breakdown Despatch Estimate
4.5 x 20mm Chipboard Wood Screw Full Thread Torx Csk in A2 Stainless
WF27066
£0.00
4.5 x 25mm Chipboard Wood Screw Full Thread Torx Csk in A2 Stainless
WF27067
£0.00
4.5 x 30mm Chipboard Wood Screw Full Thread Torx Csk in A2 Stainless
WF27068
£0.00
4.5 x 35mm Chipboard Wood Screw Full Thread Torx Csk in A2 Stainless
WF27069
£0.00
4.5 x 40mm Chipboard Wood Screw Full Thread Torx Csk in A2 Stainless
WF27070
£0.00
4.5 x 45mm Chipboard Wood Screw Full Thread Torx Csk in A2 Stainless
WF27071
£0.00
4.5 x 45mm Chipboard Wood Screw Part Thread Torx Csk in A2 Stainless
WF51984
£0.00
4.5 x 50mm Chipboard Wood Screw Full Thread Torx Csk in A2 Stainless
WF27072
£0.00
4.5 x 60mm Chipboard Wood Screw Full Thread Torx Csk in A2 Stainless
WF27073
£0.00
4.5 x 60mm Chipboard Wood Screw Part Thread Torx Csk in A2 Stainless
WF51986
£0.00
4.5 x 70mm Chipboard Wood Screw Full Thread Torx Csk in A2 Stainless
WF27074
£0.00
4.5 x 70mm Chipboard Wood Screw Part Thread Torx Csk in A2 Stainless
WF51927
£0.00
4.5 x 80mm Chipboard Wood Screw Full Thread Torx Csk in A2 Stainless
WF27075
£0.00
4.5 x 90mm Chipboard Wood Screw Full Thread Torx Csk in A2 Stainless
WF43841
£0.00
4.5 x 90mm Chipboard Wood Screw Part Thread Torx Csk in A2 Stainless
WF51929
£0.00
4.5 x 100mm Chipboard Wood Screw Full Thread Torx Csk in A2 Stainless
WF43877
£0.00
4.5 x 100mm Chipboard Wood Screw Part Thread Torx Csk in A2 Stainless
WF51979
£0.00
Prices are subject to quantity discounts based on a sliding scale. Enter the desired quantity in the relevant box in the table above. This will automatically calculate a line price indicating the applicable rate for the quantities selected. All prices shown exclude VAT.
technical drawing of Torx Countersunk Chipboard Screws
Technical Summary
d nominal diameter 4.5
dk head diameter 9
k head height 2.25
s drive size T 20
all dimensions in millimetres (mm)
